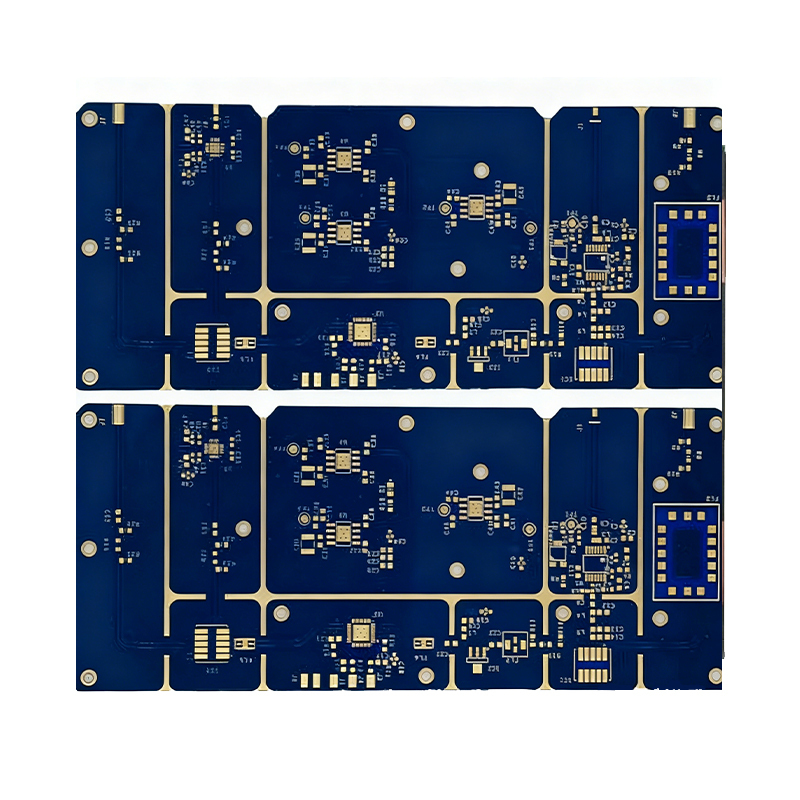

Rogers RO3006 Mircowave PCB Board

Product Model: Rogers RO3006 High Frequency PCB

Material: Rogers RO3006 substrate

Layer Count: 2 Layers

Dielectric Constant (DK): 6.5

Dielectric Thickness: 0.635mm

Thermal Conductivity: 0.69 W/m·K

Copper Specification: Base 0.5oz, Finished 1oz

Finished Thickness: 0.7mm

Surface Treatment: Immersion Gold

Minimum Trace / Spacing: 4mil / 4mil

Application: Power amplifier PCB, RF coupler PCB, cost-effective aerospace circuit boards

Description
Data Sheet

1. Real Project Display

Rogers RO3006 high-frequency circuit materials are ceramic-filled polytetrafluoroethylene (PTFE) composites, specifically developed for commercial microwave and radio frequency (RF) applications. In practical project applications, RO3006 PCBs, together with their related product RO3010 PCBs, have been widely used in high-frequency scenarios, demonstrating excellent electrical and mechanical stability, and winning recognition from customers for their cost-effectiveness and reliable performance.

2. Overview of Rogers RO3006 PCB & RO3010 PCB

Both Rogers RO3006 PCB and Rogers RO3010 PCB are ceramic-filled PTFE composite materials, specially designed to meet the needs of commercial microwave and RF applications. As a product family, they share outstanding performance characteristics, providing extraordinary electrical and mechanical stability at competitive prices, making them cost-effective choices for a wide range of high-frequency PCB projects.

3. Core Performance Characteristics

RO3006 and RO3010 PCBs exhibit excellent comprehensive performance, with key advantages reflected in their electrical properties:

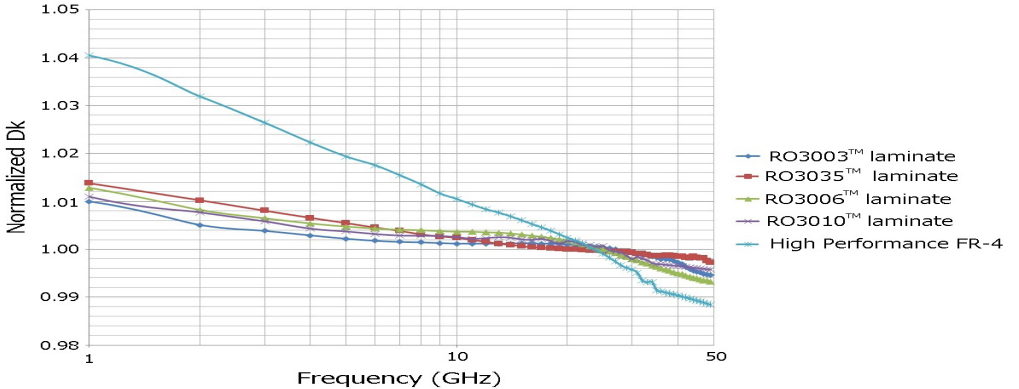

Stable dielectric constant with temperature: They have excellent dielectric constant stability when the temperature changes, and effectively eliminate the dielectric constant step phenomenon that occurs in PTFE glass cloth materials near room temperature, ensuring consistent performance in different working environments.
Low dielectric loss (DF): At 10GHz, both materials show very low dielectric loss—RO3006 has a DF value of 0.0020, while RO3010 has a DF value of 0.0022. This ultra-low loss effectively reduces signal attenuation during high-frequency transmission, ensuring high signal integrity.

4. Performance Comparison with RO3003

Compared with Rogers RO3003, RO3006 has a higher dielectric constant (DK) of 6.15. This higher DK value makes RO3006 more suitable for applications that require higher dielectric constant parameters, expanding the scope of application in high-frequency scenarios and providing more flexible material selection for designers.

5. Typical Applications

Leveraging their excellent electrical stability, low dielectric loss, and cost-effectiveness, Rogers RO3006 and RO3010 PCBs are widely applied in the following fields:

Power amplifier PCBs
RF coupler PCBs
Cost-sensitive aerospace PCBs

6. Related Products

The related products of Rogers RO3006 and RO3010 PCBs include: power amplifier PCBs, RO3006 PCBs, RO3010 PCBs, Rogers RO3006 PCBs, and Rogers RO3010 PCBs.

Model : Rogers RO3006 High Frequency pcb

Material : Rogers RO3006

Layer : 2L

DK : 6.5

Dielectric Thickness : 0.635mm

Thermal Conductivity : 0.69w/m.k

Copper Thickness : Base 0.5OZ,Finished 1OZ

Finished Thickness : 0.7MM

Surface Treatment : Immersion Gold

Trace / Spacing : 4mil/4mil

Application: power amplifier PCB, RF coupler PCB, Cost sensitive aerospace pcb
