1. Core Optical & Sensing Components of Mobile Camera Modules

1.1 Lens

As the core optical component of mobile camera modules, the lens is responsible for receiving optical signals and converging them to the photosensitive devices (CMOS/CCD). It determines the light intake efficiency of the sensor, and its optical convergence effect is equivalent to that of a convex lens in optical principle. A key technical requirement is that each lens is exclusively matched to a specific type of sensor, and the physical size of the lens must be consistent with the sensor size to ensure optical alignment accuracy and imaging quality.

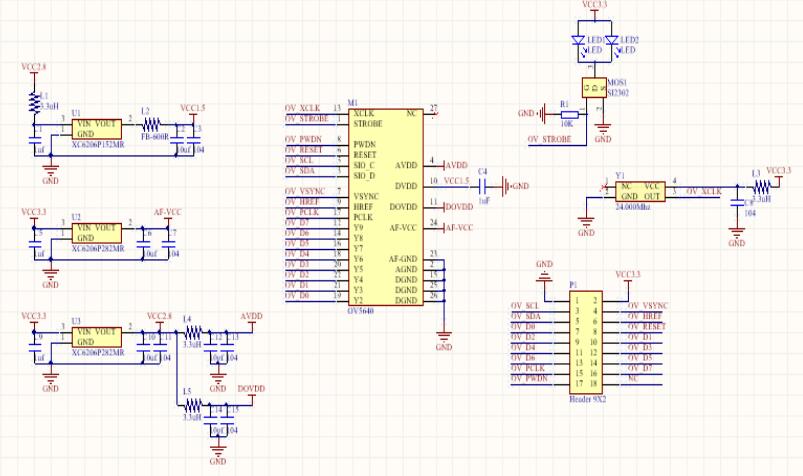

1.2 Sensor

Current mainstream photosensitive sensors for mobile camera modules are mainly divided into two categories: CMOS (Complementary Metal-Oxide-Semiconductor) and CCD (Charge-Coupled Device). With the advantages of low power consumption, high integration and cost-effectiveness, CMOS has become the mainstream development trend in the mobile terminal industry, gradually replacing CCD in most consumer electronic camera module applications.

2. Industry Trend & R-FPCB Demand for Mobile Camera Modules

With the continuous upgrading of mobile terminal imaging technology, the front and rear camera modules of smart phones will require more specialized PCB components to support high-precision imaging, multi-functional integration and miniaturized design. The ecosystem of CMOS camera modules is in a dynamic iteration stage, with a new round of technological innovation underway. Major camera module manufacturers are actively exploring technological breakthroughs to improve profit margins, and high-performance R-FPCB (Rigid-Flex PCB) has become a core supporting component to meet these upgrading demands.

3. R-FPCB Requirements & Process Design for Mobile Camera Modules

Customized R-FPCB for mobile camera modules must meet dual core requirements: on the one hand, it must comply with the ultra-thin and high-flatness structural specifications of camera modules; on the other hand, it must retain the inherent comprehensive performance of R-FPCB. Critically, it must maintain excellent flatness of mounted components and chips to ensure the imaging precision and long-term operational stability of the camera module.

In the mass production process of R-FPCB for camera modules, the following optimized process designs are adopted to ensure precision and efficiency: laser cutting deviation detection pads are etched on the base substrate, and copper-free layout is implemented on the inner and outer layers of the laser cutting path to avoid copper layer interference and ensure cutting precision; adjacent camera-specific R-FPCBs can share the longest laser cutting line, effectively optimizing processing efficiency and reducing production costs. Although the optimized layout structure has solved the product thickness problem, there is currently no mature structural solution to address the technical challenges of heat dissipation and structural strength in compact camera module spaces.

4. Maxipcb R-FPCB Structural & Process Control

Maxipcb implements strict control over the structural design and manufacturing process of R-FPCB for mobile camera modules to ensure product performance meets high-precision application requirements: the R-FPCB adopts an upper-lower asymmetric stacking structure, with board warpage strictly controlled within ≤ 0.75% to ensure flatness consistency; for the rigid board section, mechanical blind milling is adopted for window opening, which effectively prevents damage to the flexible layer during cover film stripping; the flexible section is processed by high-precision laser forming, with shape tolerance stably controlled at ± 0.05mm, ensuring precise assembly matching with camera module components.

5. Maxipcb Company Strength & Global Service Layout

5.1 Product Application Scope

Maxipcb’s R-FPCB products are widely applied in mobile camera modules, industrial equipment, medical equipment, automotive electronics, communication devices, digital products and aerospace fields, covering diverse high-precision electronic product scenarios with different performance requirements.

5.2 Global Market & Service

Maxipcb’s products are exported to major global markets including Germany, France, the United States, Australia and Sweden. The company is committed to providing global customers with convenient, efficient and professional one-stop services, covering the entire industrial chain from R&D, prototype verification, mass production to delivery and after-sales support.

5.3 Quality Certification & Assurance

Maxipcb holds UL certifications for various substrate materials and thick PI thick copper products, and has passed the ISO9001 quality management system and SGS RoHS compliance certification. A comprehensive quality assurance system is established throughout the production process, providing safe, reliable and compliant R-FPCB solutions for global customers. Since its establishment, the company has focused on the R&D and mass production of R-FPCB, and has become a trusted long-term cooperative partner in the PCB industry.

6. R-FPCB Structural Features & Manufacturing Characteristics

6.1 Structural Features

R-FPCB is a composite circuit board formed by laminating flexible FPC substrates and rigid PCB substrates into an integrated component, supporting three-dimensional wiring design. This structural advantage effectively supports the miniaturization and lightweight design of mobile camera modules. A single R-FPCB can replace the composite PCB structure composed of multiple connectors, which not only improves product performance and structural stability, but also maximizes the utilization of limited internal space of camera modules. A standard 4-layer R-FPCB adopts a polyimide (PI) flexible core with copper foils on both sides, laminated with FR4 rigid layers through professional processes to form a high-reliability composite stacking structure.

6.2 Manufacturing Characteristics

Compared with standard rigid PCBs, R-FPCB manufacturing involves multiple types of materials and more complex composite processes, resulting in a longer production cycle. Typically, the production cycle of a 4-layer R-FPCB is 5-7 times that of a standard 4-layer rigid PCB. Relying on mature process iteration capabilities and advanced high-precision production equipment, Maxipcb achieves a balance between production efficiency and product precision, effectively meeting the prototype verification and batch delivery demands of mobile camera module manufacturers.

7. Core Advantages of Maxipcb R-FPCB for Mobile Camera Modules

7.1 Ultra-Thin & High Flatness: The integrated composite stacking structure of R-FPCB effectively reduces the overall circuit thickness, meets the ultra-thin design requirements of mobile camera modules, and maintains excellent flatness after component mounting, ensuring the imaging accuracy of the camera module.

7.2 Space Optimization & Cost Reduction: The integrated R-FPCB structure eliminates the need for external connectors and HotBar processes, optimizes the internal space layout of camera modules, reduces the overall product volume, and effectively saves component and processing costs.

7.3 Enhanced Signal Reliability: Simplified cross-board interconnection paths reduce signal attenuation caused by multi-medium switching, ensuring stable transmission of high-frequency, high-precision signals between camera module components and chips, and improving product operational stability.

7.4 Flexible Adaptability: R-FPCB supports three-dimensional wiring, can be flexibly shaped according to the internal space constraints of camera modules, and has excellent high and low temperature resistance, anti-static interference and structural stability, adapting to the complex working environment of mobile electronic products.

7.5 Simplified Assembly Process: Reduced usage of connectors lowers SMT mounting and overall assembly man-hours, eliminates FPC insertion and HotBar processes, simplifies the BOM (Bill of Materials), and reduces parts management and inventory costs for customers.

8. R-FPCB Application Adaptability & Cost Trend

In addition to mobile camera modules, R-FPCB is widely used in medical equipment, aerospace and high-end digital products, especially suitable for miniaturized, high-precision and high-reliability product scenarios. Although R-FPCB has a higher initial manufacturing cost, it provides an irreplaceable optimized solution for mobile camera modules requiring ultra-thin, high-flatness and space-saving design. With the continuous maturity of the R-FPCB industry, the advancement of composite material technology and large-scale production, the comprehensive manufacturing cost of R-FPCB is gradually decreasing, further improving its cost-effectiveness and market competitiveness in the mobile camera module field.

9. Maxipcb’s Exclusive Advantages in R-FPCB for Mobile Camera Modules

9.1 Strict Material Selection

Maxipcb selects high-performance materials tailored for mobile camera module R-FPCB to ensure product performance and reliability:

• Flexible Substrate: Adopts DuPont AP adhesive-free PI substrates, which have excellent flexibility, electrical performance and heat resistance, avoiding the inherent defects of conventional adhesives and ensuring stable performance in the narrow space of camera modules.

• Rigid Substrate: Selects PI resin materials laminated with P95 substrates/prepregs, effectively avoiding warpage caused by resin system incompatibility and CTE (Coefficient of Thermal Expansion) mismatch, ensuring the high flatness of the rigid section after component mounting.

• Adhesive: Uses No-flow prepregs for lamination of rigid-flex transition zones to avoid glue overflow, ensuring the ultra-thin structural integrity of the product; all raw materials are strictly verified to meet RoHS compliance, high Tg and impedance control requirements, fully matching the high-precision needs of mobile camera modules.

9.2 Precision Process Control

Maxipcb relies on professional technical teams and advanced high-precision equipment to strictly control each core process of R-FPCB manufacturing, ensuring product precision meets the high requirements of mobile camera modules:

• Inner Layer Pattern Transfer: Adopts electrolytic cleaning technology to avoid substrate deformation, ensure the cleanliness and roughness of the copper surface, and support line width/spacing of 0.1mm~0.15mm to meet high-density wiring needs of camera modules.

• Multi-Layer Positioning: Uses OPE positioning holes and X-ray drilling calibration technology to eliminate alignment errors caused by material expansion and contraction, meeting the inter-layer registration requirement of 0.1mm~0.15mm and ensuring precise matching of each layer.

• Lamination & Drilling: Optimizes lamination parameters for PI substrates, uses silicone rubber gaskets to ensure product flatness; adopts high-speed drilling machines and high-quality drill bits to avoid drilling burrs, ensuring the precision of holes and the stability of component mounting.

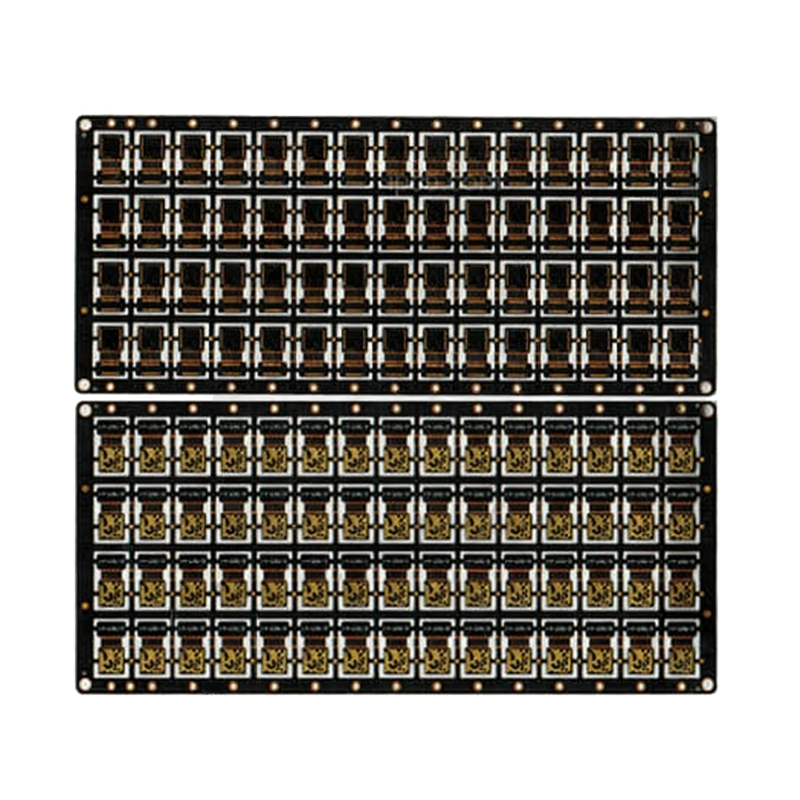

Model : Rigid-Flex PCB

Material : FR4 +PI

Layer : Rigid 4L + Flex 2L

Copper Thickness : 1OZ

Finished Thickness : 0.3mm

Surface Treatment : NiPdAu pcb

PCB gold thickness 3U

Min Hole : 0.2mm

Trace/Space : 3mil/3mil

Application： camera module pcb
