1. Advantages of Rigid-Flex PCB Prototypes

Rigid-Flex PCB prototypes integrate the core characteristics of rigid PCB (PCB) and flexible PCB (FPC), featuring foldability, bendability, space-saving capabilities, and compatibility with complex component soldering. Compared with flat wires, they offer longer service life, higher stability, and resistance to breakage, oxidation, and detachment, effectively improving the overall performance of end products.

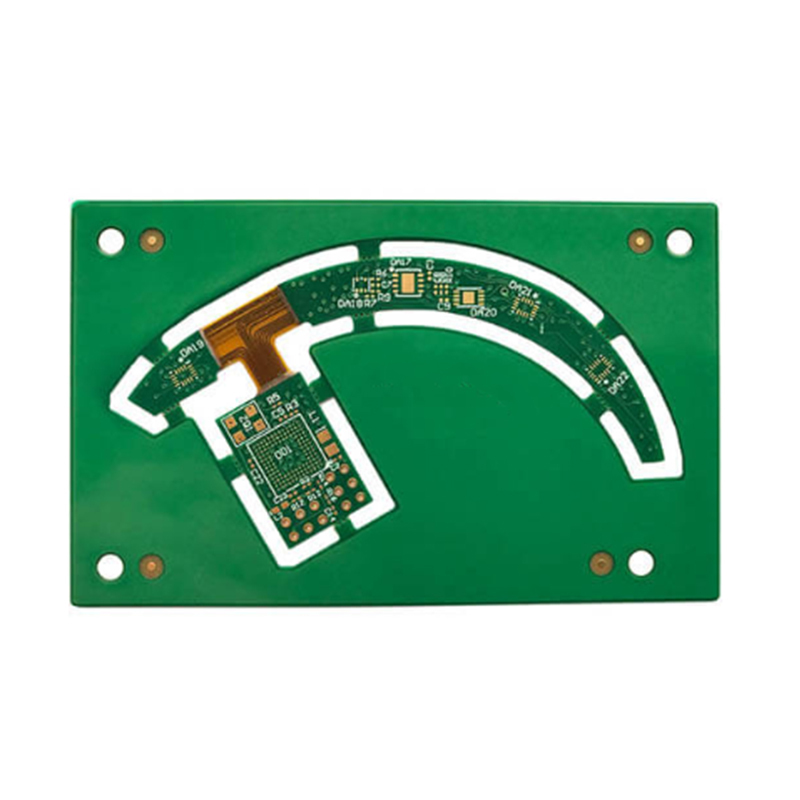

rigid-flex PCB prototype fabrication

2. Definition & Structural Features of Rigid-Flex PCB

Rigid-Flex PCB is a composite circuit board formed by laminating thin FPC substrates and rigid PCB substrates into a single component. It breaks the traditional planar design concept, extending to a three-dimensional spatial design, which brings both convenience and technical challenges to product design.

Designers can use a single Rigid-Flex PCB component to replace composite PCBs composed of multiple connectors, cables, and ribbon cables, achieving stronger performance and higher stability. By bending and folding the circuit (similar to paper folding), the design is confined to a single component, optimizing the utilization of available space.

As a type of multilayer PCB, Rigid-Flex PCB includes both rigid and flexible layers. A typical 4-layer Rigid-Flex PCB features a polyimide (PI) core with copper foils on both sides, and external single-sided FR4 rigid layers laminated on both sides of the PI core to form a complete multilayer structure.

3. Rigid-Flex PCB Prototype Fabrication Characteristics

Rigid-Flex PCB has a wide application range, but its manufacturing involves multiple materials and complex processes, resulting in longer processing time and higher costs compared to standard rigid PCBs. The key difference lies in the distinct processing technologies of FPC layers and external FR4 layers; different material layers must be laminated first before drilling and electroplating. Typically, the fabrication cycle of a 4-layer Rigid-Flex PCB is 5 to 7 times longer than that of a standard 4-layer rigid PCB.

4. Application Scope

Rigid-Flex PCB prototypes are widely used in aerospace (e.g., high-end aircraft-mounted weapon navigation systems), advanced medical equipment, digital cameras, portable camcorders, and high-quality MP3 players. They are most commonly applied in military aircraft and medical equipment, as they enhance connection reliability, reduce weight, and optimize overall product size.

5. Cost Analysis & Development Trend

Although Rigid-Flex PCB prototypes are more expensive than traditional rigid PCBs, they provide an ideal solution for projects requiring space and weight reduction—its core advantage lies in FPC substrate interconnection rather than multi-PCB connection devices, which meets the needs of many precision designs.

Its flexibility and foldability enable customized circuit design, maximizing the utilization of available space and reducing the overall system footprint. While the current overall cost is relatively high, with the continuous maturity and development of the industry, the cost will gradually decrease, enhancing its cost-effectiveness and market competitiveness.

6. Maxipcb Rigid-Flex PCB Prototype Fabrication Advantages

6.1 Material Selection

Maxipcb adheres to strict material selection standards to ensure prototype reliability:

• Flexible Substrate: Adopts DuPont AP adhesive-free PI substrates, featuring excellent flexibility, electrical performance, and heat resistance (note: PI has high hygroscopicity and poor alkali resistance). Adhesive-free substrates are selected to avoid defects of common adhesives (acrylic, polyester, modified epoxy), outperforming Japanese epoxy series substrates in overall performance.

• Rigid Substrate: After verifying epoxy boards (poor adhesion) and FR-4/G200 (warpage due to resin incompatibility), PI resin rigid materials laminated with P95 substrates/prepregs are selected. This matching resin system prevents warpage after thermal shock, meeting the strict requirements of high-end applications.

• Rigid-Flex Junction Adhesive: Uses No-flow prepregs for lamination to avoid glue overflow and transition area damage. For RoHS, high Tg, and impedance control requirements, raw material characteristics (thickness, dielectric constant, Tg, environmental protection) are strictly verified.

6.2 Key Process Control

Maxipcb relies on professional teams and advanced equipment to control core fabrication processes, ensuring prototype consistency and quality:

• Inner Layer Pattern Transfer: Uses electrolytic cleaning (avoids mechanical wiping deformation) to ensure copper surface cleanliness and roughness, supporting 0.1mm~0.15mm line width/spacing; acid etching controls rate and adopts anti-curling measures.

• Multi-Layer Positioning: Designs alignment patterns, uses OPE-drilled positioning holes (eliminates wet processing errors) and X-ray drilling (improves precision), meeting 0.1mm~0.15mm inter-layer registration requirements.

• Lamination: Reduces strong alkali process parameters for PI substrates; horizontally bakes flexible sheets to avoid deformation; uses silicone rubber gaskets for optimal lamination; ensures glass cloth direction consistency, rigid layer thickness (0.8~1.0mm), and flexible window processing precision.

• Drilling: Uses sharp drill bits (timely replaced); optimizes drilling speed/feed to avoid overheating or drill breakage; adopts high-speed machines and aluminum/epoxy backing plates to ensure hole quality and avoid burrs.

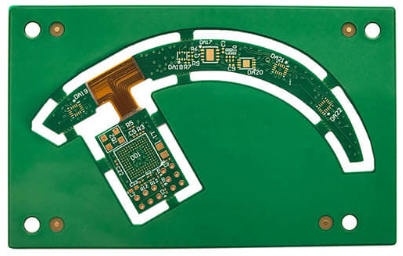

Model : rigid-flex pcb(r-fpcb)

Material : FR-4+PI

Layer : 2+2+2

Color : Green/White

Finished Thickness : 1.0mm+0.15mm

Copper Thickness : 0.035mm(1OZ)

Surface Treatment : Immersion Gold

Minimum line width / distance : 0.1/0.1mm

Application : digital rigid-flex pcb prototype fabrication
