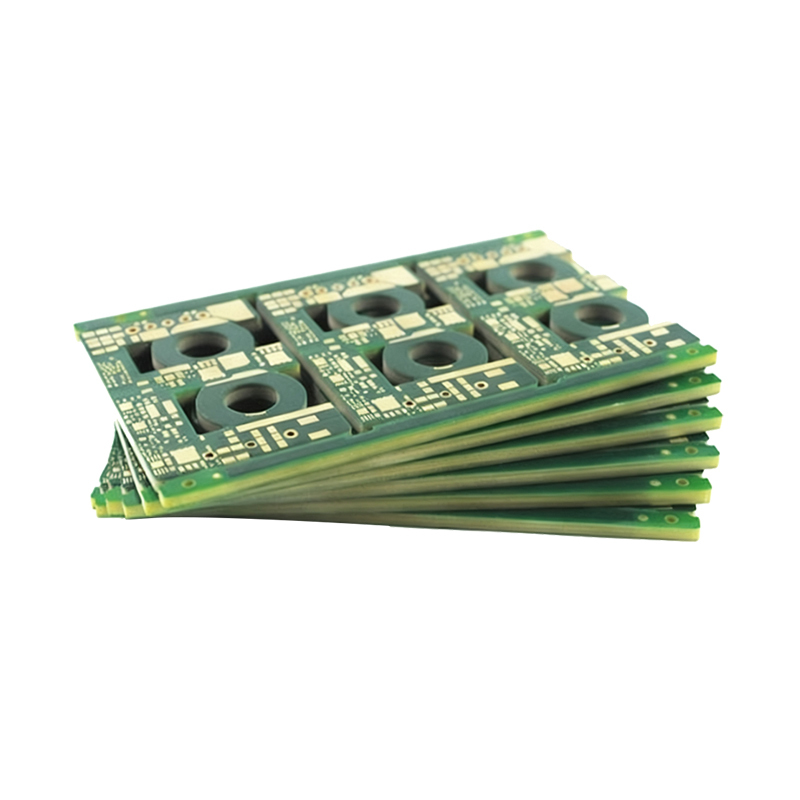

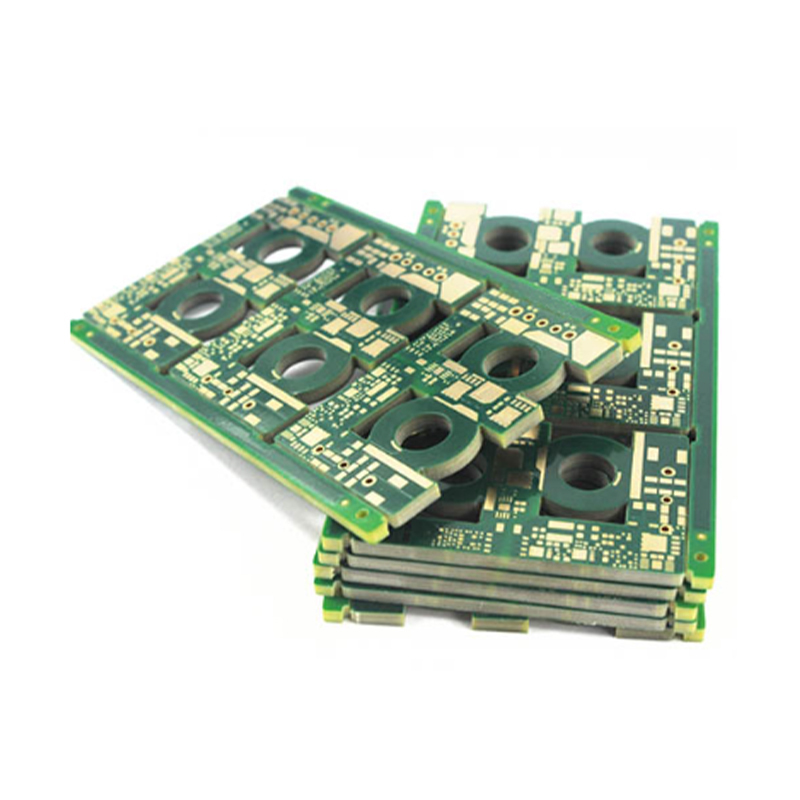

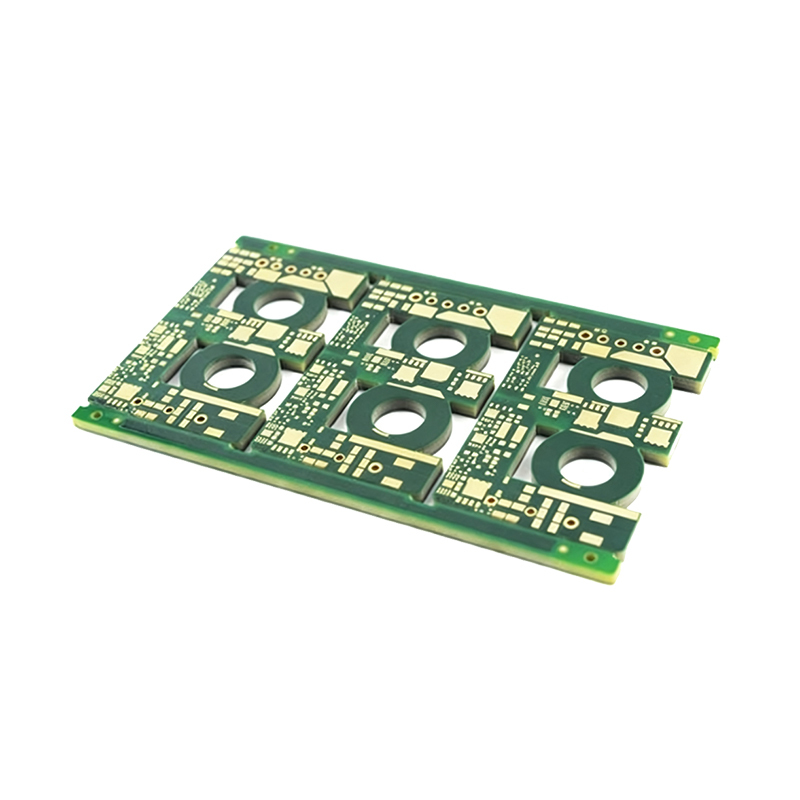

Power Module PWB

Product Model: Power Module Dedicated PWB
Base Material: High-Tg FR-4 Glass Epoxy Laminate
Layer Configuration: 12-Layer Multilayer Structure
Solder Mask & Silkscreen: Green Solder Mask with White Legend
Finished Board Thickness: 1.0 mm
Copper Weight: 2–3 oz
Surface Finish: Electroless Nickel Immersion Gold (ENIG)
Minimum Trace Width: 8 mil (0.2 mm)
Minimum Trace Spacing: 8 mil
Application: Integrated circuit design for power modules

  • Power Module PWB
  • Power Module PWB
  • Power Module PWB
  • Description

  • Data Sheet

Power Module PWB & Industry Terminology Overview

Power Module Printed Wiring Boards (PWB) are rigid circuit substrates designed for direct integration into power supply systems, capable of providing stable power delivery for digital and analog loads including ASICs, DSPs, microprocessors, memory devices and FPGAs. Such modules are widely recognized as Point-of-Load (POL) or Point-of-Use Power Supply (PUPS) systems, and are extensively deployed in communications infrastructure, automotive electronics, aerospace and other high-reliability fields due to the structural and performance advantages of modular power solutions.

Classification of Power Modules by Application

Green Power Modules

The advancement of computer technology has driven the rapid evolution of power module design. In the 1980s, switching power supplies were widely adopted in computing systems, initiating the replacement of linear power solutions. Subsequent technological progress led to the concept of green computing and green power modules, which emphasize environmental compatibility and high-efficiency energy conservation.
Defined by the U.S. EPA Energy Star program, green computing devices limit sleep-mode power consumption to below 30 watts. Improving conversion efficiency is critical to reducing energy loss; for instance, a 200W switching power supply with 75% efficiency dissipates approximately 50W as heat.

Switching Power Supply Modules

The expansion of the communications industry has accelerated innovation in communication power systems, with high-frequency miniaturized switching power supplies becoming the mainstream solution. In telecom applications, grid-fed rectification systems are classified as primary power supplies, while isolated DC-DC converters serve as secondary power sources.
Traditional phase-controlled rectifiers have been replaced by high-frequency Switching Mode Rectifiers (SMR) utilizing MOSFET and IGBT devices, operating at 50–100kHz for improved efficiency and miniaturization. Power ratings have expanded from 48V/12.5A to 48V/400A for high-capacity applications.

DC-DC Converters

DC-DC conversion technology adjusts fixed DC voltages to variable levels, supporting adjustable-speed drive systems in electric vehicles, rail transit and industrial machinery. This topology improves dynamic response and achieves energy savings of 20–30% compared to resistive regulation, while mitigating grid-side harmonic interference.
Commercial telecom DC-DC modules utilize high-frequency PWM control at approximately 500kHz, with power densities ranging from 5W to 20W/in³. Advanced designs integrating zero-current and zero-voltage switching further enhance power density and efficiency.

Uninterruptible Power Supply (UPS)

UPS systems provide continuous, high-reliability power for critical computing and communication infrastructure. Mains AC power is rectified to DC, charging battery banks while feeding an inverter stage to regenerate stabilized AC output. Redundant backup paths ensure continuity during component failure.
Modern UPS integrates PWM control, advanced power semiconductors and microprocessor-based intelligent management for remote monitoring and diagnostics. Online UPS systems reach capacities up to 600kVA, with compact low-power models available from 0.5kVA to 3kVA.

Inverter Power Supplies

Inverter drives enable variable-frequency speed control for AC induction motors, delivering significant energy savings in industrial and consumer applications. The topology follows an AC-DC-AC conversion scheme, with PWM-controlled IGBT stages producing adjustable-frequency sinusoidal outputs.
Inverter technology below 400kVA is widely commercialized, particularly in variable-speed air conditioning systems. Optimized control algorithms and component selection continue to improve efficiency and reliability.

Welding Power Modules

High-frequency inverter welding power supplies represent advanced arc-welding technology, featuring high efficiency and material savings. The typical topology employs AC-DC-AC-DC conversion, with IGBT-based inverters operating at 20kHz for stable output.
Microprocessor-enhanced PWM control improves reliability under harsh cyclic operating conditions, supporting rated currents up to 300A with a 60% duty cycle and adjustable output from 5A to 300A.

High-Voltage DC Power Modules

High-power high-voltage DC systems are used in electrostatic precipitation, water treatment, medical imaging and industrial equipment, with output voltages from 50kV to 150kV and power levels exceeding 100kW.
High-frequency resonant conversion and dry-type transformer technology reduce system size while improving performance. Domestic electrostatic precipitator power supplies achieve 55kV output at 15mA, operating at 25.6kHz.

Active Power Filters

Traditional AC-DC converters introduce harmonic distortion and reduce power factor, causing grid pollution. Active power filters dynamically suppress harmonics through controlled power converters, overcoming limitations of passive LC filters.
Dual-loop control schemes monitor both output voltage and input current, ensuring low harmonic content and improved power factor.

Distributed Power Systems

Distributed power architectures utilize modular low-power converters and integrated control circuits to achieve scalable, intelligent high-power systems. This approach optimizes reliability, maintainability and efficiency, with applications in data centers, telecom and industrial automation.
The technology supports low-voltage high-current delivery for advanced integrated circuits and high-power industrial applications including electroplating, electrolysis and electric traction.




PCBvs PWB, PWB vs FPC

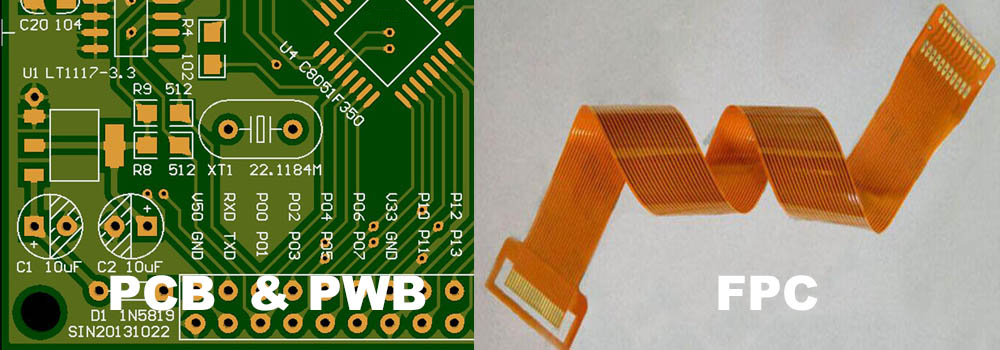

PCB, PWB and FPC Terminology Distinction

  • PCB (Printed Circuit Board): A standard industry term referring to substrates supporting both conductive circuit patterns and surface-mounted or through-hole components.
  • PWB (Printed Wiring Board): An earlier designation originating from traditional manufacturing, describing substrates with only etched conductive pathways without integrated printed components.
  • FPC (Flexible Printed Circuit): A flexible, bendable circuit substrate, commonly referred to as a “flex board.”
In modern manufacturing, PCB has become the universal term encompassing both rigid and flexible technologies. Rigid boards are generally referred to as PCBs, while flexible assemblies are known as FPCs; PWB remains in technical usage, particularly in power module and high-layer-count applications.

Model:Power Module PWB

Material : High TG FR4Layer: 12Layers

Color : Green/white

Finished Thickness:1.0mm

Copper Thickness:2-3OZ

Surface Treatment :lmmersion Gold

Min Trace : 8mil(0.2mm)

Min Space : 8mil(0.4mm)

Application :Power Module PWB
