PCBA - Car charging PCBA

Product Model: Car Charging PCBA
Material: FR4
Layer Structure: 4 Layers
Solder Mask: Blue / White
Finished Thickness: 1.6mm
Copper Thickness: 1/1/1/1oz
Surface Treatment: Immersion Gold
Min. Trace: 4mil
Min. Space: 4mil
Application: Car Charging Equipment

  • PCBA - Car charging PCBA
  • PCBA - Car charging PCBA
  • PCBA - Car charging PCBA
  • Description

  • Data Sheet

1. Core Term Definition: PCB & PCBA

1.1 PCB (Printed Circuit Board)

PCB is the abbreviation of Printed Circuit Board. It is an important electronic component in the electronics industry, fabricated through electronic printing technology—hence the name "printed" circuit board. As a support for electronic components and a carrier for their electrical connections, PCB is widely used in the production and manufacturing of electronic products, with the following core characteristics:
  • High wiring density, small volume and light weight, which is conducive to the miniaturization of electronic equipment;
  • The repeatability and consistency of circuit patterns reduce wiring and assembly errors, saving equipment maintenance, commissioning and inspection time;
  • Facilitates mechanized and automated production, improving labor productivity and reducing the cost of electronic equipment;
  • Standardized design, enabling good interchangeability.

1.2 PCBA (Printed Circuit Board Assembly)

PCBA is the abbreviation of Printed Circuit Board Assembly. It refers to the entire processing process of assembling electronic components on an empty PCB through SMT (Surface Mounted Technology) or DIP (Dual In-line Package) plug-in. In simple terms, PCB refers to an empty circuit board without any components, while PCBA refers to the finished circuit board after all assembly processes on the PCB are completed, which can also be understood as a PCBA processing process.


PCBA


2. SMT & DIP Assembly Technologies

Both SMT and DIP are core technologies for integrating components on PCBs, with distinct differences in process principles and application scenarios.

2.1 SMT (Surface Mounted Technology)

Surface Mount Technology mainly uses a surface mount machine to mount micro and small-sized components on PCB boards. With the advancement of technology, it can also mount some large-sized components (such as large-scale mechanical components on motherboards). Its standard production process includes: PCB positioning → solder paste printing → component mounting by surface mount machine → reflow soldering → manufacturing inspection.
SMT assembly has high requirements for positioning accuracy and component size; in addition, the quality of solder paste and printing quality also play a key role in ensuring assembly reliability.

2.2 DIP (Dual In-line Package)

DIP, commonly referred to as "plug-in", is an assembly method that inserts component pins into pre-drilled holes on the PCB. It is mainly used for components that are too large to be suitable for SMT mounting or when the manufacturer's production process cannot adopt SMT technology. Currently, the industry mainly adopts two implementation methods: manual plug-in and robotic plug-in.
The main production process of DIP includes: back glue pasting (to prevent tin plating on inappropriate areas) → component plug-in → inspection → wave soldering → board cleaning (removing stains left after reflow soldering) → finished product inspection.

2.3 Key Differences Between SMT and DIP

The core difference between SMT and DIP lies in the assembly method: SMT does not require drilling holes on the PCB, and components are directly mounted on the surface of the PCB; DIP requires pre-drilling holes on the PCB, and component pins are inserted into the drilled holes for assembly.

3. New Energy Vehicle Charging Pile PCBA

The development of new energy vehicles has driven the rapid development of related supporting facilities, among which charging piles are one of the core supporting facilities—equivalent to the gasoline for traditional fuel vehicles, realizing the replacement of material energy (gasoline) with electricity. Maxipcb has an experienced independent R&D and manufacturing team in charging pile PCBA control design and manufacturing, providing integrated services including PCBA OEM, PCB production, SMT/DIP processing and component procurement.

3.1 Functions of Charging Pile Control PCBA

Maxipcb’s charging pile control PCBA has comprehensive functional characteristics, suitable for both household and commercial charging pile equipment, with the following core functions:
  • Real-time display of charging parameters (current, voltage, charging progress, etc.);
  • Support for voice broadcasting function, facilitating user operation and information acquisition;
  • Real-time monitoring and reporting of charging current and charging faults, ensuring charging safety;
  • Rich exception handling functions, effectively responding to various abnormal charging scenarios.

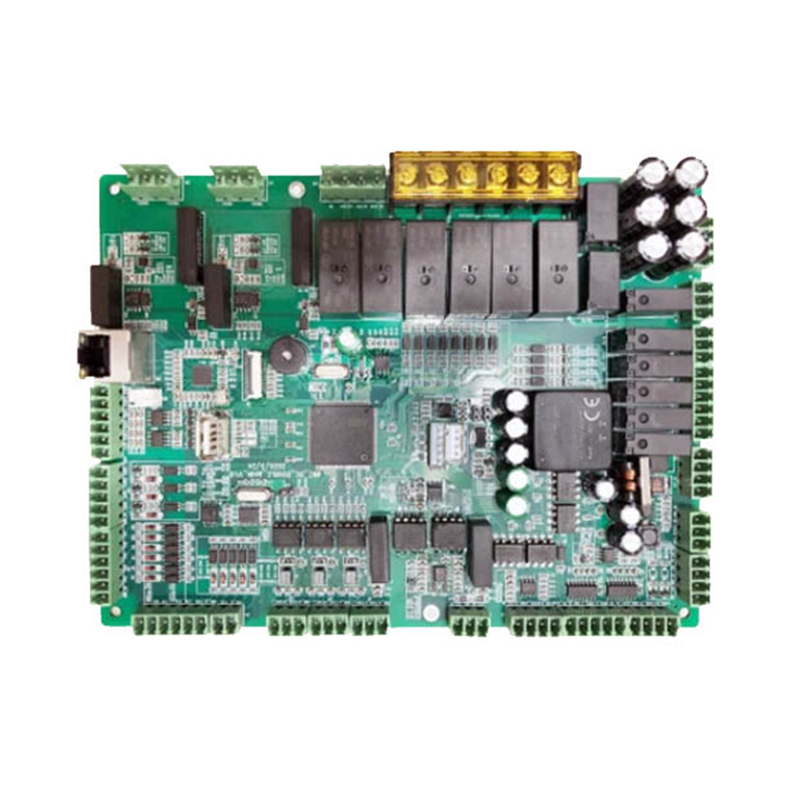

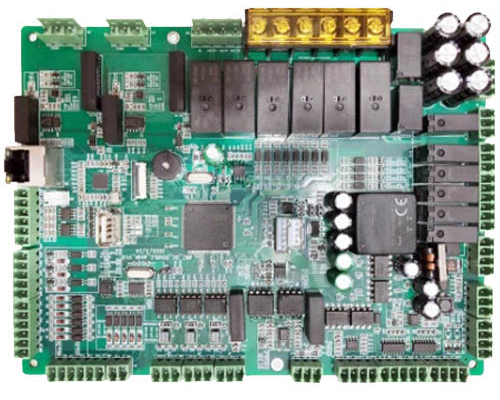

Car charging control PCBA

4. Maxipcb Core Advantages & Service Commitment

Maxipcb is a professional provider of small and medium-batch electronic services integrated with sample production, holding authoritative certifications including IATF16949, UL, ISO9001 and SGS RoHS, ensuring the quality and compliance of PCB, PCBA and charging pile PCBA products.
With rich experience in PCB/PCBA R&D, design and assembly, Maxipcb focuses on providing customized one-stop solutions to meet the diverse needs of customers in new energy automotive charging piles and other fields. Our services cover proofing, sample verification, small-batch trial production and large-batch mass production, with reasonable pricing, strict quality control and on-time delivery.
Maxipcb adheres to the core value of quality, continuously optimizes the assembly process, improves production efficiency, and ensures that each product meets the technical requirements of customers. We are committed to establishing long-term cooperative relationships with new and old customers, providing professional technical support and satisfactory after-sales services, and helping customers achieve product upgrading and market competitiveness.

5. Consultation Guide

For more details about Maxipcb’s PCB, PCBA, SMT/DIP processing and new energy vehicle charging pile PCBA services, product customization and quotation, welcome new and old customers to consult us at any time. Our professional team will provide you with tailored solutions and timely responses.

Model : PCBA

Material : FR4

Layer :  4Layer

Color : Blue/White

Finished Thickness :  1.6mm

Copper Thickness :  1/1/1/1oz

Surface Treatment :  Immersion Gold

Min Trace :  4mil

Min Space :  4mil

Application:Car charging PCBA
