1. Overview of Optical Module PCB

Optical Module PCB serves as the core carrier for optoelectronic signal conversion, playing an irreplaceable role in high-speed communication systems and data center applications. Its design must not only meet the requirements of high-speed data transmission but also effectively address a series of unique technical challenges, including thermal management optimization, signal integrity control, and electromagnetic compatibility (EMC) compliance.

2. Definition and Application of Optical Modules

An optical module is a core device that realizes bidirectional conversion between electrical and optical signals. Its core function is to convert electrical signals into optical signals at the transmitting end, transmit the optical signals through optical fibers, and then convert the received optical signals back into electrical signals at the receiving end, thereby completing long-distance, high-efficiency data transmission.

Optical modules are key components for seamless interconnection and collaborative operation between various network devices. For example, routers, switches, servers, and storage equipment in modern network systems all rely on optical modules to achieve data interaction, making optical modules widely applied in high-speed communication, data centers, cloud computing, and other fields.

3. Classification of Optical Modules by Packaging Form

Optical module products have a diverse range of specifications, which can be subdivided into multiple types according to different packaging forms to adapt to application needs in various scenarios. The main types are as follows:

3.1 SFP Optical Module

Small Form Factor: The compact structure facilitates the deployment and replacement of equipment, reducing the space occupation of network devices.
High Transmission Speed: It supports multiple standard transmission rates, including 1Gbps, 2Gbps, and 4Gbps, and some high-end models can reach a maximum transmission rate of 4.25Gbps.
Hot-Swappable Function: It can be plugged in or pulled out during the normal operation of the device, which greatly simplifies the maintenance and upgrade work of the network system and improves the operational efficiency.
Strong Flexibility: It is compatible with various types of optical fibers, which can meet the transmission distance requirements of different scenarios and balance the cost and performance.

3.2 SFP+ Optical Module

High-Speed Transmission: It supports a maximum data transmission rate of 10Gbps, which can fully meet the bandwidth requirements of high-speed network systems.
Backward Compatibility: It is interchangeable with SFP modules, enabling smooth upgrade of existing network systems without replacing the entire device.
Low Power Consumption: The optimized design effectively reduces the power consumption of the module, contributing to the energy conservation of the entire network equipment.
Miniaturized Design: It adopts a form factor consistent with SFP modules, while achieving performance improvement, ensuring compatibility with existing device slots.

3.3 SFP28 Optical Module

Ultra-High Transmission Speed: It supports a data transmission rate of 25Gbps, serving as an upgraded version of the SFP+ optical module, which significantly improves the data transmission efficiency.
High Port Density: The further optimized miniaturized structure effectively increases the port density of network devices, making it suitable for high-density deployment scenarios.
Compatibility: It maintains interchangeability with SFP+ modules, facilitating the smooth transition and upgrade of network systems.
High Efficiency: It is especially suitable for high-bandwidth application scenarios such as data centers and high-performance network switches, meeting the demand for large-capacity data transmission.

3.4 QSFP+ Optical Module

Ultra-High Speed: It supports a maximum data transmission rate of 40Gbps, which can meet the ultra-high-speed data transmission needs of large-scale network systems.
High Port Density: The quad-channel design effectively improves the port density of network devices, reducing the space occupation of equipment in data centers.
Low Power Consumption: The optimized power management design reduces the power consumption of the module, helping to lower the overall energy consumption of network equipment.
Strong Flexibility: It supports multiple types of optical fiber connectors and transmission protocols, adapting to different application scenarios and transmission requirements.

3.5 QSFP28 Optical Module

Extreme Transmission Speed: It supports a data transmission rate of 100Gbps, which is one of the most widely used high-end optical modules in the current market.
High Density: The quad-channel design further improves the port density of network devices, enabling more efficient use of equipment space.
Compatibility: It is interchangeable with QSFP+ modules, ensuring the compatibility and expandability of network systems.
High Performance: It is widely deployed in data centers, cloud computing, and other application scenarios that require ultra-high-speed data transmission, providing reliable support for large-capacity data interaction.

3.6 QSFP-DD Optical Module

Ultra-High Bandwidth: It provides two specifications of 200Gbps and 400Gbps, which can flexibly meet the high-speed networking needs of different scales.
Efficient Channel Design: The 200Gbps version adopts 8×25Gbit/s channels, and the 400Gbps version adopts 8×50Gbit/s channels, ensuring stable and efficient high-speed data transmission.
High Port Density: Under the same physical size, it achieves higher port density and transmission rate, which is suitable for high-density deployment in data centers.
Advanced Structural Design: It is specially designed for data centers and high-performance computing (HPC) environments, supporting higher data transmission rates and lower latency, meeting the core needs of high-end computing and communication scenarios.

4. Core Functions and Design Requirements of Optical Module PCB

Functionally, optical module PCB is responsible for realizing the efficient conversion between electrical and optical signals, ensuring that data can be transmitted efficiently and stably over long distances through optical fibers. In the design process, it is necessary to comprehensively consider three core elements: signal integrity, thermal management, and electromagnetic compatibility, so as to adapt to the high-speed (such as 400G/800G) and high-density data transmission environments.

The design of optical module PCB is a systematic engineering project that integrates three key links: material selection, impedance control, and thermal management. Neglecting any link may lead to the degradation of module performance or even complete failure. Based on in-depth mastery of high-frequency PCB design standards, Maxipcb not only provides professional technical consulting services from substrate selection to laminate structure design but also proactively identifies and mitigates design risks through Design for Manufacturability (DFM) analysis, such as sharp angles of impedance traces, excessive via density, and other potential problems that may affect product performance. For any technical bottlenecks encountered in the design of optical module PCB, Maxipcb can provide customized professional solutions to help accelerate the market launch of products.

5. Key Technical Challenges in Optical Module PCB Design

5.1 Signal Integrity Control

High-speed signal processing puts forward strict requirements on the design of signal traces. Differential signal traces need to be designed to be as short and wide as possible to minimize signal interference and transmission loss. At the same time, single-ended weak signals require precise impedance matching to reduce the impact of via holes on signal integrity and ensure the stability of signal transmission.

In addition, the gold finger connectors of optical module PCB require extremely high processing precision. Fine drilling or CCD milling processes are usually adopted to improve the alignment accuracy of gold fingers, ensure the reliability of assembly between the module and the device, and avoid poor contact caused by machining errors.

5.2 Thermal Management Optimization

Thermal optimization is one of the major technical challenges in optical module PCB design. Heat-generating components such as lasers will produce a large amount of heat during operation. If the heat cannot be dissipated in time, it will seriously affect the performance and service life of the optical module. Therefore, it is necessary to design effective heat dissipation paths, such as improving the thermal conductivity of the PCB itself or cooperating with the module housing to achieve heat dissipation.

It should be noted that the performance of optical modules is highly sensitive to temperature changes. For example, a 1°C increase in operating temperature may cause a 0.1dB attenuation of optical power, which directly affects the transmission quality of signals. Therefore, the thermal design of optical module PCB must be precise and reliable.

5.3 Component Layout and Signal Management

The layout of components and the management of signal traces in optical module PCB design need to be carefully planned. The transmitting end and receiving end of the module must adopt isolated routing to avoid mutual interference between signals and ensure the purity of signal transmission. At the same time, the power supply traces need to be separated from the high-voltage sections to prevent electromagnetic interference and ensure the safety and stability of the entire system.

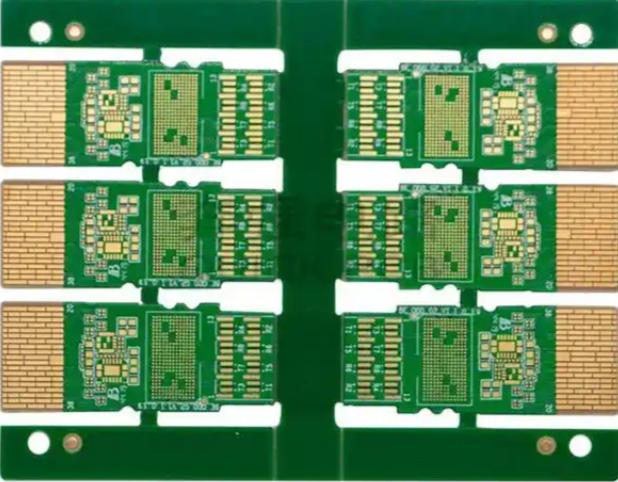

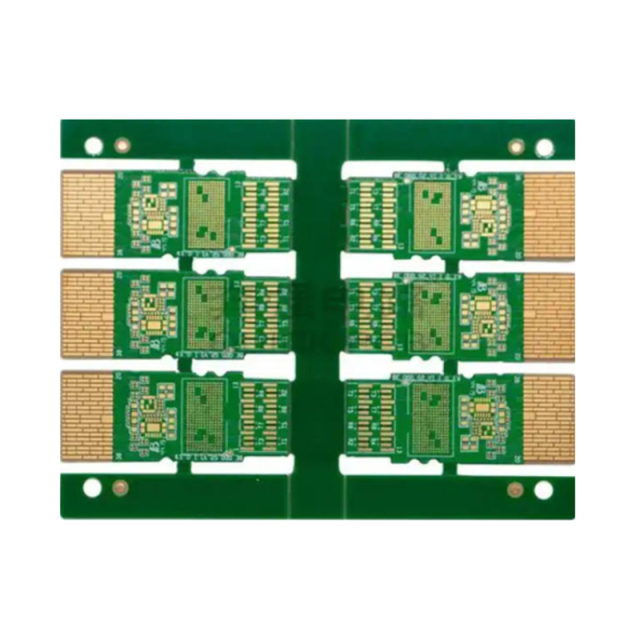

Model : Optical Module PCB

Layers : 8Layers

Material : TG170 FR4

Construction : 2+4+2 HDI PCB

Finished Thickness：0.8mm

Copper Thickness : 0.5OZ

Color : Green/White

Surface treatment: Electric hard gold

Special technology: golden finger bevel

Min Trace / Space：3mil/3mil

Application : Communication equipment, data centers, high-performance computing (HPC), and artificial intelligence (AI) support high-speed data transmission and computing power demands.
