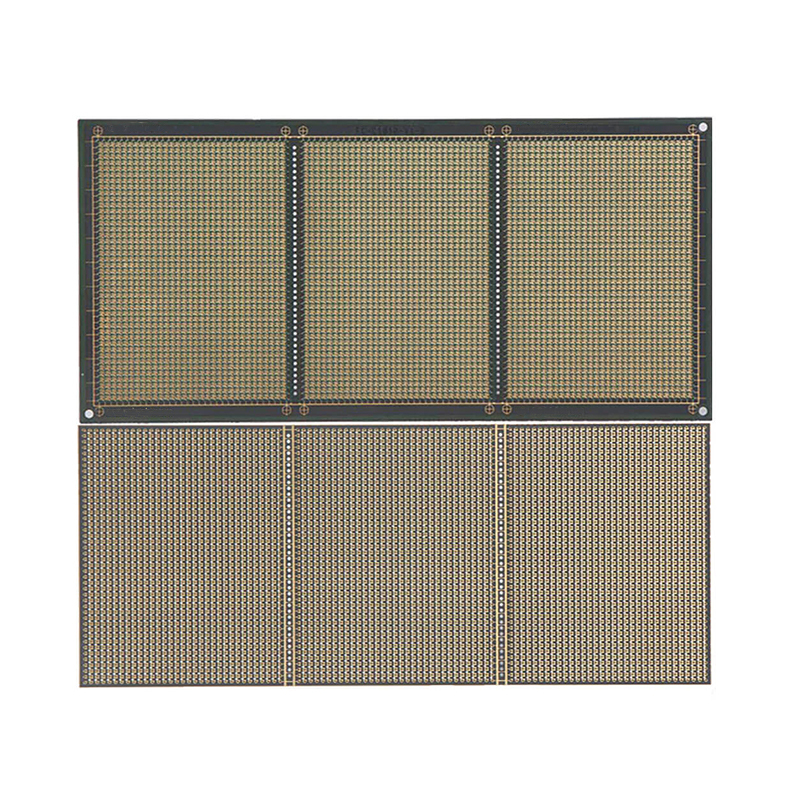

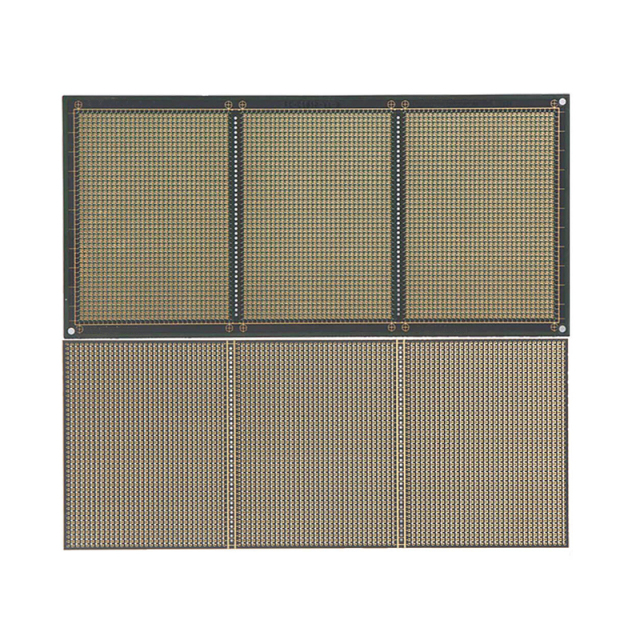

Mini LED PCB

Product Model: Mini LED Package Substrate

Material: Doosan (South Korea)

PCB Layers: 4 Layers

PCB Thickness: 0.5mm

Single Unit Size: 1.2 × 1.2mm

Solder Mask Ink: PSR-4000 AUS308

Surface Treatment: Electroless Nickel Silver Gold

Min. Aperture: 0.3mm

Min. Line Width: 30μm

Min. Line Spacing: 80μm

Application: Mini LED Package Substrate

Description
Data Sheet

1. Mini LED Technology Fundamentals

Mini LED, or sub-millimeter light-emitting diode, refers to LED devices with chip dimensions of approximately 100µm, first proposed by Epistar. Positioned between traditional LED and Micro LED technologies, Mini LED represents a significant evolutionary upgrade to conventional LCD backlight architectures.

2. Mini LED vs Micro LED: Technical & Commercial Comparison

Mini LED offers distinct advantages over Micro LED in current commercial applications:

Superior production yield: Mature manufacturing processes enable higher yields compared to Micro LED
Flexible form factors: Supports special-shaped cutting and high-curvature backlight designs using flexible substrates
Enhanced display performance: Implements precise local dimming for improved color rendering and finer HDR partitioning
Thin profile: Achieves thickness comparable to OLED displays
Exceptional power efficiency: Delivers up to 80% power savings in typical usage scenarios

These characteristics make Mini LED ideal for backlight applications requiring power efficiency, thin form factors, HDR capability, and special-shaped displays. It is widely adopted in smartphones, televisions, automotive displays, and gaming laptops.

From a commercial perspective, Mini LED presents lower technical barriers and easier mass production compared to Micro LED, allowing it to capture significant share of the LCD backlight market with superior cost-effectiveness. Industry analysis indicates that LCD TV panels with Mini LED backlights are priced at 60-80% of equivalent OLED panels while delivering comparable brightness and image quality, with higher power efficiency. A typical 55-inch Mini LED backlight LCD panel incorporates approximately 40,000 LED chips, providing significant demand for LED die manufacturers.

While Micro LED represents the next revolutionary display technology with transformative image quality improvements, it remains technically immature for mass market adoption. Mini LED, as an incremental upgrade to LED backlighting, delivers substantial improvements to existing LCD displays with manageable costs, positioning it as the mainstream display technology in the near term.

3. Comparative Analysis of Mainstream Display Technologies

OLED (Organic Light-Emitting Diode)

OLED is a self-emissive display technology that utilizes organic compounds to emit light directly in response to electric current. Unlike LCD, OLED displays do not require a backlight module or liquid crystal layer, enabling pixel-level brightness control. Key advantages include:

Ultra-fast response times due to direct electrical control of individual pixels
Superior energy efficiency, as only active pixels consume power
Perfect black levels and infinite contrast ratio
Ultra-thin and flexible form factors

QLED (Quantum Dot LED)

QLED technology leverages quantum dot materials, which emit light of specific wavelengths when excited by blue light. By precisely mixing red and green quantum dots, QLED produces extremely pure white light, delivering significantly wider color gamuts compared to conventional LED displays.

Early quantum dot implementations utilized film-based solutions, where quantum dot films were placed in front of blue LED backlight modules. More advanced electroluminescent quantum dot technologies integrate quantum dots directly into LED structures, improving stability and light output efficiency. While QLED offers exceptional color performance, early quantum dot materials faced stability challenges that have been gradually addressed through material science advancements.

4. Clarification of Mini LED Technical Positioning

Two common misconceptions regarding Mini LED technology should be clarified:

Mini LED functions exclusively as a direct-type white light backlight module for LCD displays, utilizing smaller LED chips than conventional backlights
Mini LED is not part of the OLED technology chain. It represents a separate evolutionary path from traditional LED backlighting, positioned between conventional LED and Micro LED technologies. OLED and Mini LED are distinct, competing display technologies with different underlying principles and application scenarios.

Model: Mini LED package substrate

Material: Doosan(South Korea)

Layers: 4layers

Thickness: 0.5mm

Single size: 1.2 * 1.2mm

Resistance welding: PSR-4000 AUS308

Surface treatment: Electric nickel silver gold

Minimum aperture: 0.3mm

Minimum line distance: 80um

Minimum line width: 30um

Application: Mini LED package substrate
