What Are High‑Speed PCBs & Key Design Considerations

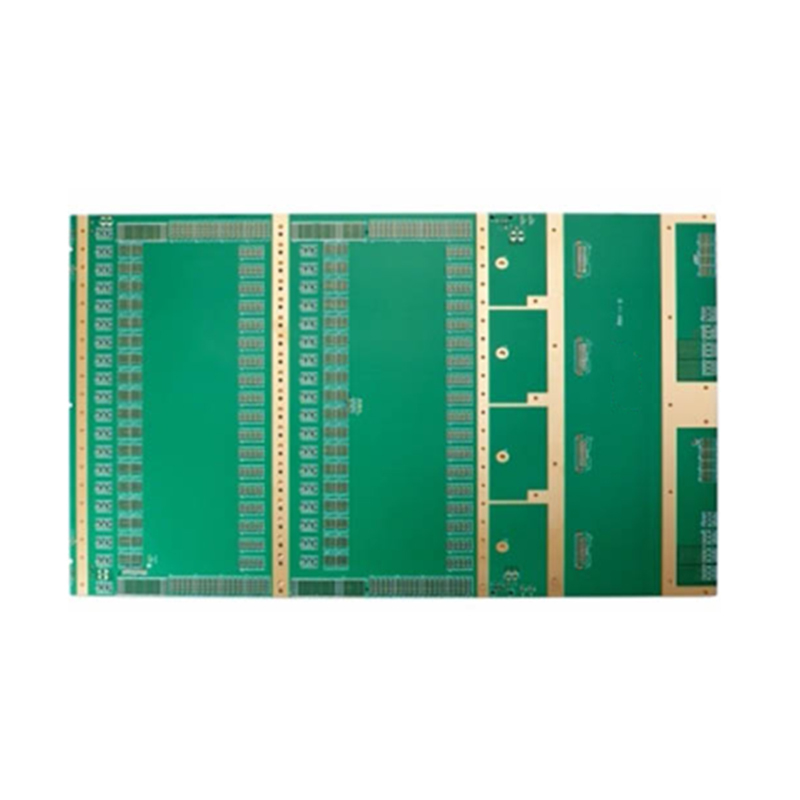

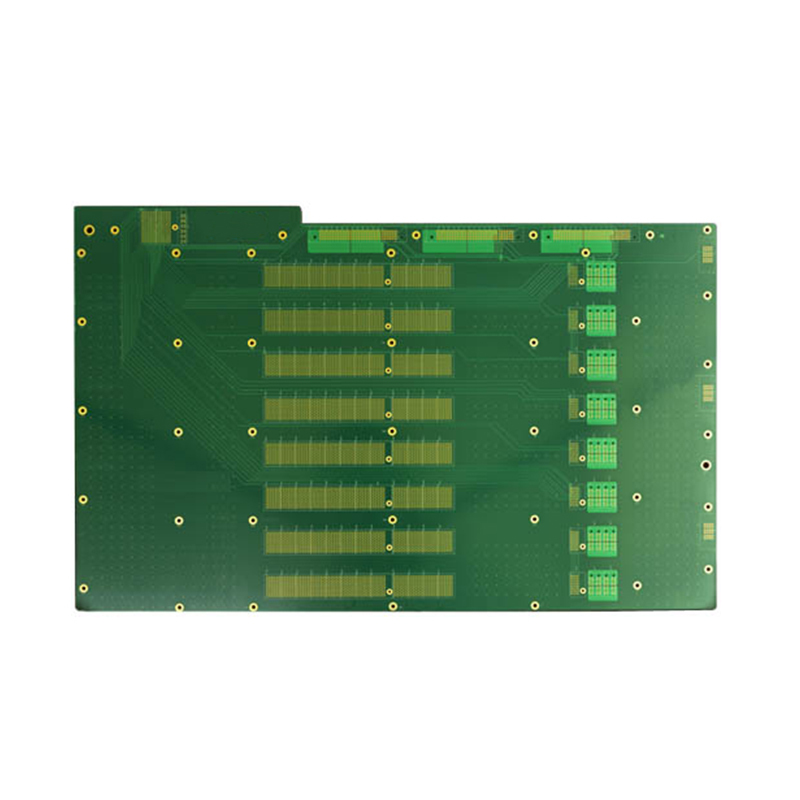

Name: High speed PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Availability: InStock
Rating: 5 (1 reviews)

A printed circuit board is generally defined as high‑speed when its digital logic circuit operates at or above 45–50 MHz, and such high‑frequency circuitry makes up more than one‑third of the entire electronic system.

How to Select PCB Materials for High‑Speed Designs

Key requirements for high‑speed PCB base materials include:

Low transmission loss, excellent CAF resistance, thermal stability, and mechanical adhesion for long‑term reliability
Stable Dk / DF values with minimal variation across frequencies and environmental changes
Tight tolerances in substrate thickness and resin content to support precise impedance control
Low‑roughness copper foil to minimize signal attenuation
Flat-weave fiberglass styles to reduce skew and high‑frequency loss

Signal integrity in high‑speed systems depends heavily on impedance consistency, transmission line loss, and signal delay. Acceptable signal integrity can be achieved when the receiving end obtains stable waveforms and qualified eye diagrams. For this reason, core material parameters such as Dk, DF, and overall loss are critical in high‑speed digital circuit design.

The dielectric constant (Dk) is essential for both analog and digital circuits, as it directly determines the characteristic impedance of transmission lines. Any fluctuation in Dk — whether from frequency shifts or temperature changes — causes unintended impedance variations, degrading high‑speed signal transmission. When Dk differs across harmonic frequencies, impedance also changes accordingly, leading to signal attenuation, frequency offset, and waveform distortion, all of which impair signal integrity.

Dispersion is another material property closely linked to Dk. Lower dispersion, meaning Dk changes very little with frequency, supports better high‑speed digital performance. Dispersion can be caused by dielectric polarization, material loss, and high‑frequency copper surface roughness. Therefore, high‑speed substrates require highly stable Dk across wide frequency and temperature ranges.

High‑Speed PCB Transmission Loss Types

Transmission loss in high‑speed PCBs typically consists of dielectric loss, conductor loss, and radiation loss.

Dielectric loss rises with increasing signal frequency, especially for high‑order harmonics, causing severe amplitude attenuation and signal distortion. It is proportional to operating frequency, the square root of Dk, and the dielectric loss factor (DF).
Conductor loss relates to conductor type, insulation, and physical dimensions, and increases with the square root of frequency. In PCB production, conductor loss is mainly affected by the skin effect and copper foil roughness. Smoother copper foil with shorter “copper teeth” helps improve high‑speed signal quality.
Radiation loss is associated with dielectric properties and is proportional to Dk, DF, and the square root of frequency.

Overview of Panasonic M6 High‑Speed PCB Material

Common High‑Speed PCB Material Categories

Many people associate PCBs with standard FR‑4, which refers to the substrate system composed of resin matrix, fiberglass reinforcement, and copper foil. FR‑4 typically uses epoxy or modified epoxy resin as the binder and fiberglass cloth as reinforcement, making it the most widely used PCB material worldwide.

FR‑4 and advanced high‑speed materials can be classified in several ways:

By Fiberglass Weave Style

Common types include 106, 1067, 1080, 1078, 2116, 2113, 3313, 7628, all defined under IPC standards to ensure consistency across suppliers.

By Glass Fiber Type

E‑glass: Electrical‑grade alkali‑free glass, the most common choice for general and mid‑range PCBs.
NE‑glass: Low‑Dk specialty glass with lower dielectric constant and loss than E‑glass, often used in high‑performance materials like M7NE, IT968SE, IT988GSE.

By Resin System & Brand

Iteq series: IT180A, IT170GRA1, IT958G, IT968, IT968SE, IT988GSE
Tuc series: Tu862HF, Tu872LK, Tu872SLK, Tu872SLK‑SP, Tu883, Tu933+
Panasonic series: Megtron4, M4S, Megtron6, M6G, M7E, M7NE
Park Meteorwave series: MW1000, MW2000, MW3000, MW4000, MW8000
Shengyi series: S1000‑2(M), S7439, S6
Rogers RF series: RO4003, RO3003, RO4350B

By Loss Level

Standard loss (DF ≥ 0.02)
Medium loss (0.01 ＜ DF ＜ 0.02)
Low loss (0.005 ＜ DF ＜ 0.01)
Ultra‑low loss (DF ＜ 0.005)

By Flame Retardancy

Flame‑retardant (UL94 V0, V1)
Non‑flame‑retardant (UL94 HB)

In practice, “high‑speed PCB materials” usually refer to performance‑graded substrates such as IT180A, S1000‑2, IT968, M4S, and Panasonic Megtron6 / M6G, which offer lower loss than conventional FR‑4 and are widely used as high‑Tg and high‑speed laminates.

High‑Speed PCB Design & Layout Principles

High‑quality high‑speed PCB design must balance signal integrity and power integrity, as power integrity directly affects final signal performance.

For 5G and advanced high‑speed applications, stack‑up design must prioritize material selection to support stable signal transmission, thermal management, and electromagnetic interference (EMI) suppression. Higher operating frequencies demand low‑loss, stable dielectrics to avoid signal attenuation and interference.

As devices become smaller and lighter, substrates must be compact and mechanically compatible with miniaturized components. Fine trace geometries and strict impedance control are required, often using modified semi‑additive processes instead of traditional etching for improved accuracy.

Preferred material features include low Dk (near 3), tight fiberglass weaving, low DF, and ultra‑low‑profile copper to preserve signal integrity. Crosstalk, EMI, and parasitic capacitance can be mitigated by separating analog and digital routing, using multilayer boards to isolate return paths, and adding proper shielding and filtering.

Advanced inspection systems such as high‑precision AOI and 2D measurement are used to verify trace quality and avoid defects that cause signal degradation.

Increased signal speed also raises thermal concerns. Substrates must withstand elevated temperatures to avoid copper delamination, warping, or shrinkage. Materials with high thermal conductivity, stable heat distribution, and consistent dielectric properties are essential for reliable performance.

High‑speed PCB design involves many interdependent factors. Placing high‑speed devices close together reduces delay but may increase crosstalk and thermal buildup, requiring careful trade‑offs. A structured, controllable design flow is key to achieving reliable, manufacturable high‑speed PCBs.

Summary & Service Introduction

High‑speed PCBs are advanced circuit boards built with specialized high‑speed laminates, featuring high transmission speed, strong reliability, low latency, large bandwidth, and high data capacity. They are widely used in 5G communications, base stations, servers, and high‑performance computing equipment.

As a core product offering, we provide full‑chain support including high‑speed PCB design, prototyping, manufacturing, SMT assembly, and turnkey PCB assembly services. For inquiries regarding high‑frequency or high‑speed PCB production, feel free to reach out for professional support.

Model: high speed PCB

Layer: 8 Layer PCB

Material: Panasonic M6 high speed PCB

Finished Thickness: 1.0mm

Copper Thickness:0.5OZ/1OZ

Color: Greenwhite

Surface treatment: Electric hard gold

Special technology: golden finger bevel

Min Trace /Space: 3mil/3mil

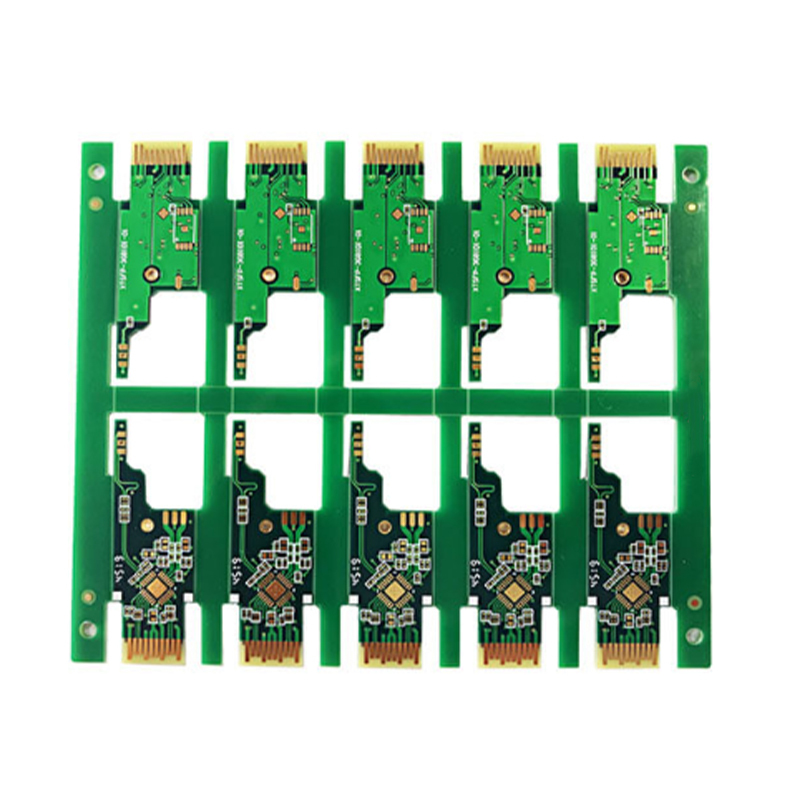

Application: Optical Module high speed PCB
