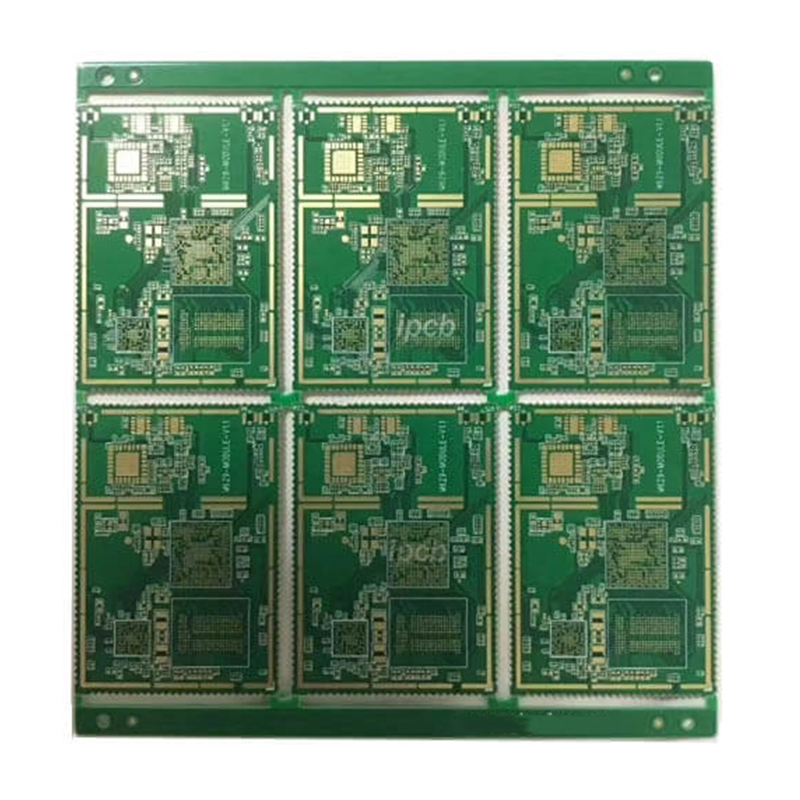

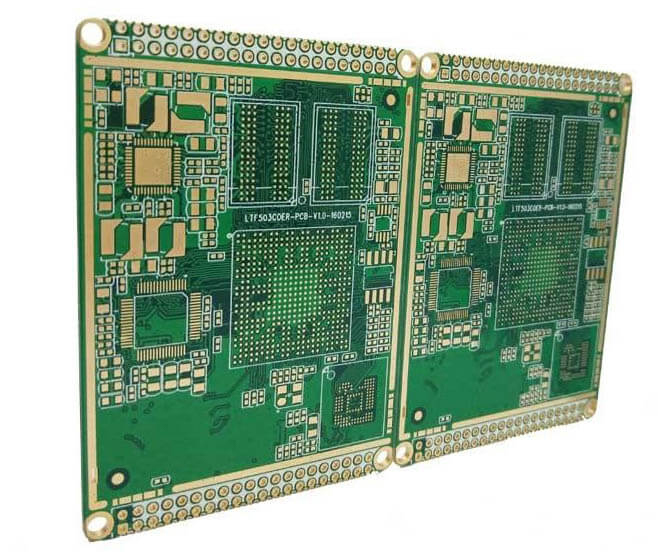

Half Hole Car Core Multilayer PCB

Name: Half Hole Car Core Multilayer PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: Half-Hole Automotive Core Control Module Multilayer PCB

Base Material: High-Tg FR‑4 Laminate (Tg ≥ 170°C)

Layer Configuration: 6-Layer Multilayer Structure

Solder Mask & Silkscreen: Green Solder Mask with White Legend

Finished Board Thickness: 0.8 mm

Copper Weight: 1 oz for inner layers; 0.5 oz for outer layers

Surface Finish: Electroless Nickel Immersion Gold (ENIG)

Minimum Design Rule: 4 mil (0.1 mm) trace width / 4 mil (0.1 mm) trace spacing

Half-Hole Specification: 0.5 mm castellated hole diameter

Key Feature: Custom castellated half-hole structure for stable module interconnection

Application: Automotive core control modules and vehicle electronic systems

Get The Latest Quote

Description
Data Sheet

Company Overview

Maxipcb Circuits Limited (Maxipcb®.com) is a technology-driven printed circuit board manufacturer specialized in the R&D and precision manufacturing of high-frequency microwave PCBs and high-end multilayer PCBs. We build our core competitiveness around a full-cycle, high-standard quality control system that covers incoming inspection, process control, finished product verification, and batch traceability, enabling us to provide highly reliable, industry-grade PCB solutions for wireless communications, automotive electronics, RF microwave, and industrial control fields.

Our main product lines include high-frequency microwave PCBs, RF circuit boards, double-sided and advanced multilayer PCBs. We have accumulated mature and stable manufacturing and quality management experience in power dividers, couplers, combiners, power amplifiers, communication base stations, 3G/4G/5G antennas, radar microwave modules and other high-reliability applications. Our material system covers F4B substrates, PTFE (Teflon), and high-performance high-frequency laminates from world-renowned suppliers such as Rogers and Taconic, as well as standard FR‑4 and aluminum-based metal-core PCBs capable of stable mass production.

With ready inventory of full-range high-frequency materials with dielectric constants from 2.2 to 20 and a complete set of standardized quality control procedures, we support rapid prototyping and volume delivery of high-frequency microwave PCBs. Each batch undergoes strict incoming material verification, real-time online process monitoring, dimensional inspection, electrical performance testing, and reliability screening before delivery. All production data and test records are fully traceable throughout the lifecycle, ensuring consistent electrical performance, structural stability, and long-term durability for every product.

MSB786 Automotive Infotainment & Navigation Main Control Solution

The MSB786 is a highly integrated dedicated main control platform designed for automotive infotainment and navigation systems, featuring powerful computing, display and multimedia processing capabilities:

Main Processor: ARM Cortex‑A9 dual-core CPU with NEON multimedia acceleration engine and 512KB L2 cache
Graphics Processor: Built-in 3D GPU fully supporting OpenGL ES 1.1/2.0 standard interfaces
Memory & Storage: Supports DDR3 16-bit / 8-bit×2 up to 1GHz; compatible with i‑NAND, Movi‑NAND, SLC/MLC NAND Flash with up to 60-bit ECC error correction
Multimedia: Supports 1080P full HD decoding and 720P H.264 hardware encoding
Display Output: Supports LVDS / TTL / TTL+TCON displays up to 1280×800 resolution; CVBS and HDMI 1.4 output
OS Compatibility: Stable support for Android 4.1, ideal for automotive human-machine interaction, navigation and infotainment applications

Model : Half Hole Car Core Multilayer PCBMaterial :TG170 High TG FR4

Layer : 6Layers

Color : Green/WVhite

Finished Thickness:0.8mm

Inner layer copper thickness: 1OZ

Outer layer copper thickness :0.5OZ

Surface Treatment : lmmersion Gold

Min Trace/Min Space : 4mil(0.1mm)/4mil(0.1mm)

Pore size of half hole :0.5mm

Characteristic :Half hole PCB

Application : half hole car core PCB
