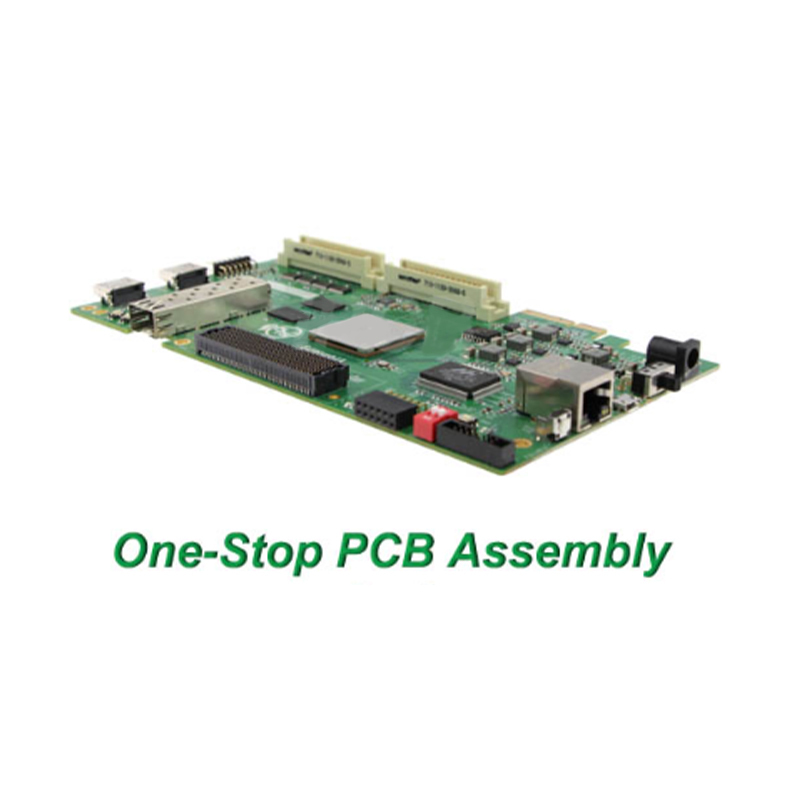

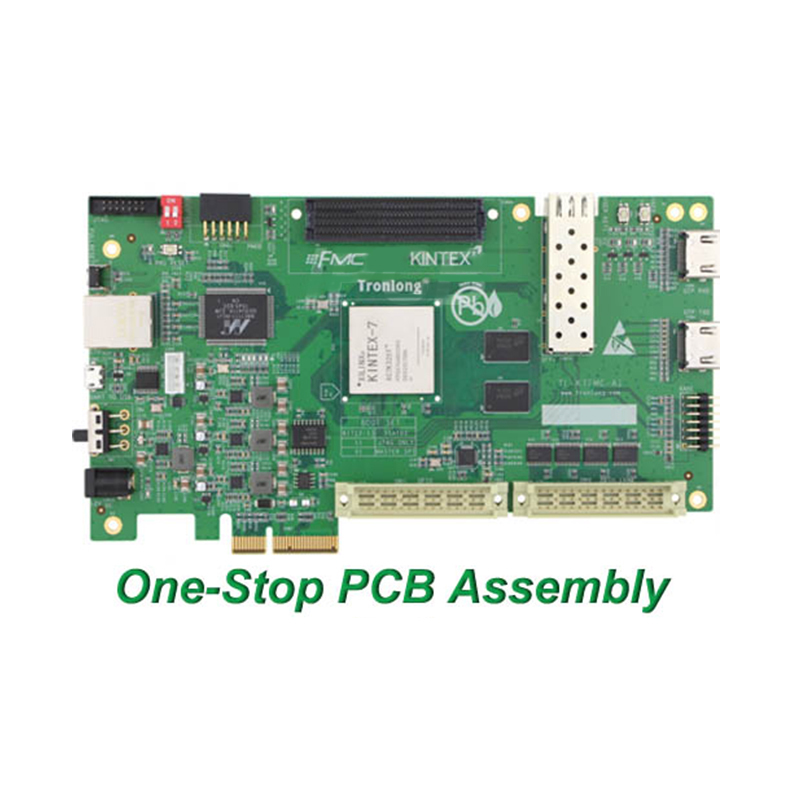

Name: FPGA PCB Assembly
Brand: PCB Printed Circuit Board and PCBA manufacturing

Description
Data Sheet

Product Description

Functional Targeting of Multi-Layer FPGA Solutions

This multi-layer FPGA pcb assembly addresses the complex needs of engineers and developers working on high-performance hardware requiring rapid reconfiguration and scalability. Designed for system integrators and manufacturers, it supports customizable architectures that enhance logic design flexibility and accelerate product development cycles. Our pcb assembly services cater to FPGA applications demanding meticulous layout precision, signal integrity, and robust inter-layer connectivity, enabling seamless hardware acceleration in data-intensive environments. The solution suits users requiring low latency and adaptable circuitry within demanding technical ecosystems.

Technical Specifications and Advanced Manufacturing Techniques

The pcb assembly manufacturer utilizes up to 56 layers constructed from high TG FR-4 substrates, ensuring exceptional thermal resilience and electrical performance. Surface treatments such as hard gold or immersion gold finishes enhance connectivity and longevity. Copper thickness ranges from 0.5oz to 2oz, adjustable per design requirements. The manufacturing process complies with IPC standards and includes comprehensive PCB and PCBA testing, certified by ISO9001, UL, and RoHS. Flexible PCB color options support visual differentiation in complex designs. This pcb prototype service integrates precise production control to maintain quality benchmarks and functional reliability across iterations.

Industry Applications and Value Realization

Maxipcb’s custom pcb assembly caters to sectors such as industrial control, automotive electronics, telecommunications, and computing systems where FPGA flexibility is paramount. Applications include fault-tolerant vehicle-mounted systems, real-time control modules, and high-speed communication boards. This pcb assembly manufacturer’s solutions deliver stable power distribution and effective EMI management critical for high-reliability performance. Leveraging these pcb solutions enables faster time-to-market and scalability in sophisticated FPGA hardware deployments, providing clients with durable, flexible, and technically comprehensive electronic board systems.

Product Advantages

Structural Design Excellence in Multi-Layer Assembly

The custom pcb assembly integrates modular layer stacking and advanced substrate technologies, enabling up to 56 strategic layers within compact footprints. This design facilitates high-density routing and minimal crosstalk, essential for FPGA complexity. Surface finishes such as hard gold offer corrosion resistance and strengthened soldering pads. The pcb assembly manufacturer incorporates rigorous quality assurance and adherence to industry certifications, supporting a seamless transition from pcb prototype service phases to full-scale production. Intelligent layout design improves signal integrity and power distribution efficiency across intricate multilayer circuits.

Enhanced Performance and Operational Reliability

Maxipcb delivers pcb assembly services with robust EMI shielding and thermal management attributes designed for rigorous industrial demands. User workflows benefit from accelerated prototype iterations due to integrated testing and consistent manufacturing precision. custom pcb assembly provides optimized electrical conductivity and longevity, reducing failure rates and maintenance needs. This pcb assembly manufacturer’s proven quality framework ensures compliance with international standards, promoting confidence in operational stability and system integration. Clients experience maximized ROI through dependable performance and streamlined production scalability.

1. FPGA Core Definition & Working Principle

Field Programmable Gate Array (FPGA) is a typical reconfigurable hardware chip with programmable circuit architecture. Different from fixed-function dedicated chips, FPGA realizes functional iteration and scenario switching through software programming, and supports flexible customized logic development for multiple industrial segments.

With powerful parallel computing simulation capability, FPGA can replicate the parallel operation logic of CPU, GPU and other mainstream computing chips. By building high-speed interconnection interfaces with peripheral hardware, it effectively compensates for the low operating efficiency of traditional processors and completes system-level hardware acceleration.

Inside the chip, FPGA integrates massive configurable logic units and programmable routing networks. Designers can freely connect internal logic modules according to actual development requirements, which is equivalent to embedding a customizable circuit system inside a single chip. The reconfigurable logic resources and wiring modes enable FPGA to flexibly realize diversified customized logic functions.

2. FPGA Performance Comparison & Application Advantages

Compared with ASIC dedicated integrated circuits, FPGA features moderate operating frequency and limited ultra-complex circuit development capability, along with lower static power consumption. It presents prominent comprehensive advantages in short-cycle mass production, programmable error correction and R&D cost control. For cost-sensitive scenarios with low editability requirements, manufacturers often adopt a hybrid development mode: completing function verification on universal FPGA chips first, then migrating the finalized design to cost-effective ASIC-like customized chips for mass production.

Driven by the diminishing dividends of Moore’s Law and the explosive growth of machine learning, cloud computing and communication business demands, customized hardware acceleration has become an industry trend. As a flexible and reprogrammable hardware carrier, FPGA has long served as an alternative solution for small-batch ASIC projects. In recent years, it has been widely deployed in large-scale data centers, delivering high-efficiency computing power while taking into account flexible task scheduling and iterative upgrading.

In terms of underlying architecture, traditional CPU and GPU adopt the von Neumann system, which relies on instruction decoding, execution scheduling and shared memory interaction, resulting in complex control logic and limited parallel expansion capability. In contrast, FPGA adopts an instruction-free and memory-isolated hardware architecture, with greatly optimized energy efficiency ratio and response latency.

GPU relies on single-instruction multi-data parallel computing and requires a large batch of data processing to exert its performance, resulting in millisecond-level delay; FPGA integrates pipeline parallelism and data parallelism, achieving microsecond-level low delay response, which is highly suitable for high real-time industrial control, automotive electronics and high-speed signal processing scenarios.

As a semi-customized chip in the ASIC industry chain, FPGA makes up for the long cycle and high cost of full-custom circuits, as well as the resource limitation of early programmable devices. Its programmable feature allows developers to quickly customize digital circuit logic, making it the preferred hardware solution for small and medium-batch industrial systems to enhance equipment integration and operational reliability.

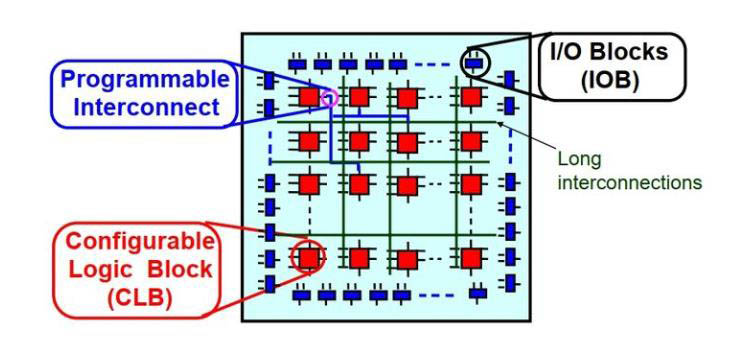

Basic internal structure of FPGA

3. Mainstream FPGA Manufacturers and Development Platforms

The global mainstream FPGA suppliers and their supporting development tools are as follows:

Xilinx: ISE, Vitis
Intel Altera: Quartus II
Actel: Libero
Lattice: Lattice Radiant
Microchip, Atmel

4. FPGA Application Value in Automotive Electronics

Traditional vehicle electronic control schemes based on single-chip microcomputers, customized ASICs and complex wiring harnesses have gradually reached technical bottlenecks, bringing new design challenges to the automotive industry. Wide-temperature FPGA devices can effectively improve the fault tolerance and multi-condition adaptive capability of vehicle-mounted electronic systems.

Although component suppliers adopt standardized anti-interference design and environmental simulation verification, extreme working conditions are still likely to trigger packaging and assembly failure risks. High-grade FPGA products launched by Xilinx, Actel and other brands support military-grade wide temperature specifications, with controllable thermal expansion coefficients and excellent thermal stress resistance, which can fully meet the derating design requirements of vehicle-grade electronic systems.

5. Maxipcb FPGA PCB & PCBA One-Stop Service

As a professional one-stop PCB manufacturing and assembly provider, Maxipcb provides customized FPGA bare board production and supporting PCBA processing services, covering the whole process from board customization, component mounting to finished product testing.

5.1 Core Application Scenarios

High-Performance Computing & Communication Hardware Acceleration
For high-speed computing and communication equipment, customized FPGA hardware acceleration modules require multi-layer high-density PCB stacking and high-conductivity dielectric materials to ensure stable power supply and high-fidelity signal transmission. Maxipcb’s FPGA PCB products meet strict EMI electromagnetic compatibility and thermal management specifications, adapting to long-term high-load parallel computing operation and supporting iterative hardware upgrading.
Vehicle-Mounted Fault-Tolerant Electronic System
FPGA is widely used in vehicle safety control units such as adaptive cruise and real-time fault diagnosis. Maxipcb adopts high-Tg substrates and gold-plated surface finishing for vehicle-grade FPGA PCB, which maintains stable signal integrity under high temperature, vibration and harsh working conditions, and fully complies with automotive industry quality standards.

5.2 Product Customization & Technical Specifications

Maxipcb supports personalized customization of FPGA PCB, with a maximum customizable layer count of 56 layers. It flexibly selects high-Tg FR-4 substrates, with copper foil thickness ranging from 0.5oz to 2oz, and provides diversified surface treatments such as gold plating, immersion silver and OSP to match different high-reliability application needs.

5.3 Quality Control & Delivery Guarantee

All FPGA PCB and PCBA products are manufactured in accordance with IPC international standards. The factory has passed ISO9001, UL and RoHS certification, with a complete full-process quality inspection system. According to project complexity and order volume, we provide prototype rapid proofing and mass production delivery services, and deliver professional technical support throughout the whole cycle to meet customers' differentiated R&D and production needs.

FAQ

What materials do you use for Multi-Layer FPGA pcb assembly?
We use premium substrates such as FR-4 and high thermal-grade (High TG) materials to ensure durability and thermal stability. Our surface treatments include hard gold or immersion gold finishes, supporting high reliability in FPGA applications. This quality is integral to our custom pcb assembly services.

Can you accommodate custom layer counts and thicknesses in pcb assembly?
Yes, we support up to 56 layers and configurable copper thicknesses from 0.5oz to 2oz. This flexibility allows us to tailor the PCB stack-up to your specific FPGA hardware design requirements, a key advantage of our pcb assembly manufacturer capabilities.

Do you provide testing and certification for your pcb assembly services?
Absolutely. All PCBs and PCBA undergo rigorous testing, meeting ISO9001, UL, and RoHS certifications. We strictly follow IPC standards to ensure your multi-layer FPGA pcb assembly performs reliably in industrial environments.

How do you support the manufacturing process from prototype to mass production?
We offer comprehensive support across development phases, including prototype fabrication and high-volume production. Our expert technical team ensures each batch meets your specifications with consistent quality through our established pcb assembly services and quality management system.

FPGA PCB Assembly

PCB layers: up to 56 layers

Substrate: FR-4 / high TG

Surface treatment: Gold

Gold thickness: 2U-5U

Solder resist: green

Copper thickness: 0.5oz-2oz

PCB Color: Green, Black, White, Red, Blue

PCB Testing: Yes

PCBA Testing: Yes

Application: FPGA PCB Assembly
