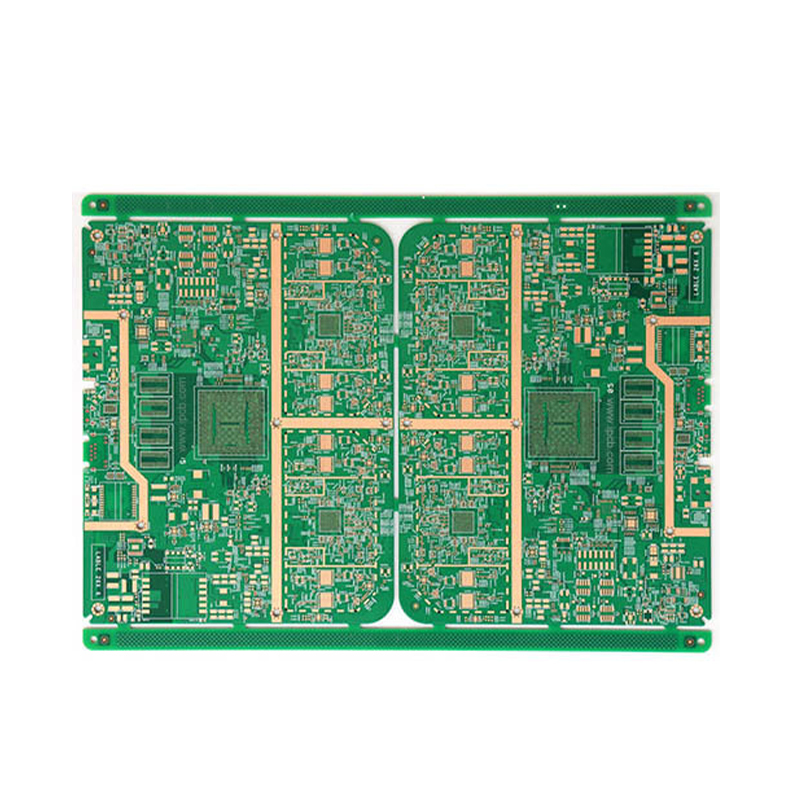

Digital products HDI PCB

Name: Digital products HDI PCB
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

Product Model: High-density interconnect PCB for digital electronic devices

Layer Structure: 8-layer multilayer board, adopting 2+4+2 HDI laminated architecture

Base Laminate: IT180A high TG FR4 substrate

Overall Board Thickness: 1.0mm finished dimension

Copper Foil Weight: Inner and outer layers both 0.5oz

Solder Mask Option: Green and white ink available

Surface Finishing: Electroless nickel immersion gold process

Custom Special Process: Non-customized special craftsmanship

Micro Routing Capability: Minimum line width and line spacing of 3mil/3mil for BGA areas

Applicable Scope: Customized circuit substrates for mainstream digital electronic equipment

Get The Latest Quote

Description
Data Sheet

1. Efficient Technical Response & Intelligent Service

Maxipcb has independently developed the industry-leading PCB Automatic Quotation System (PAQS). Through digital linkage across engineering review, production scheduling and manufacturing processes, it shortens the overall cycle from project development to mass production, accelerating customers’ product launch progress and enhancing market competitiveness.

2. Mature Technology & Comprehensive Product Capability

With more than ten years of continuous technical iteration and capacity expansion, the company has built diversified precision PCB manufacturing capabilities. The product portfolio covers conventional rigid PCB, high-frequency microwave PCB, multi-layer FPC, rigid-flex combined board, high-density HDI PCB and complex high-layer multilayer PCB, fully meeting customized demands across different industries and application scenarios.

3. Customer-Oriented Cooperation Concept

We adhere to a long-term win-win cooperation model and implement equal service standards for all clients regardless of project scale or order volume. Committed to professional technical support and standardized after-sales service, we deliver stable and reliable solutions for every partner.

4. Premium Raw Material Guarantee

We adopt globally well-known certified base material suppliers, including Isola, Panasonic, TUC, ITEQ, Shengyi, KB, Rogers, Arlon and Taconic. A full range of high-frequency, high-speed and conventional substrate materials are kept in stock, such as FR408, 370HR, TU872, RO4350B, RO4003C, RT5880, Megtron 4/6 and S1000-2, to support diversified material customization and stable board performance.

5. Stable Delivery Capacity

Covering FR-4 standard PCB, multilayer board, HDI board, ceramic PCB, PTFE high-frequency board, hybrid laminated board and special material boards such as hydrocarbon and Teflon, Maxipcb adopts advanced ERP intelligent production management system. Optimized scheduling and process management ensure an on-time delivery rate of over 95%, leading the industry in delivery efficiency.

6. Strict Quality Management

Backed by a standardized full-process quality control system and over ten years of precision manufacturing experience, all products comply with international industrial specifications. IPC Class III high-grade quality standards are available on demand. Comprehensive incoming inspection, in-process monitoring and finished product testing ensure long-term and stable product reliability.

Model : Digital products HDI PCB

Layers : 8Layers

Material : IT180A

Construction : 2+4+2 HDI PCB

Finished Thickness：1.0mm

Copper Thickness : 0.5/0.5OZ

Color : Green/White

Surface treatment: immersion gold

Special technology: None

Min Trace / Space：BGA 3mil/3mil

Application : Digital products PCB
