Multi-board combined layout is widely adopted in electronic equipment design, which requires stable and reliable electrical connection between independent printed circuit boards. Reasonable inter-board connection design directly affects assembly efficiency, structural stability and long-term operating reliability of the whole device.

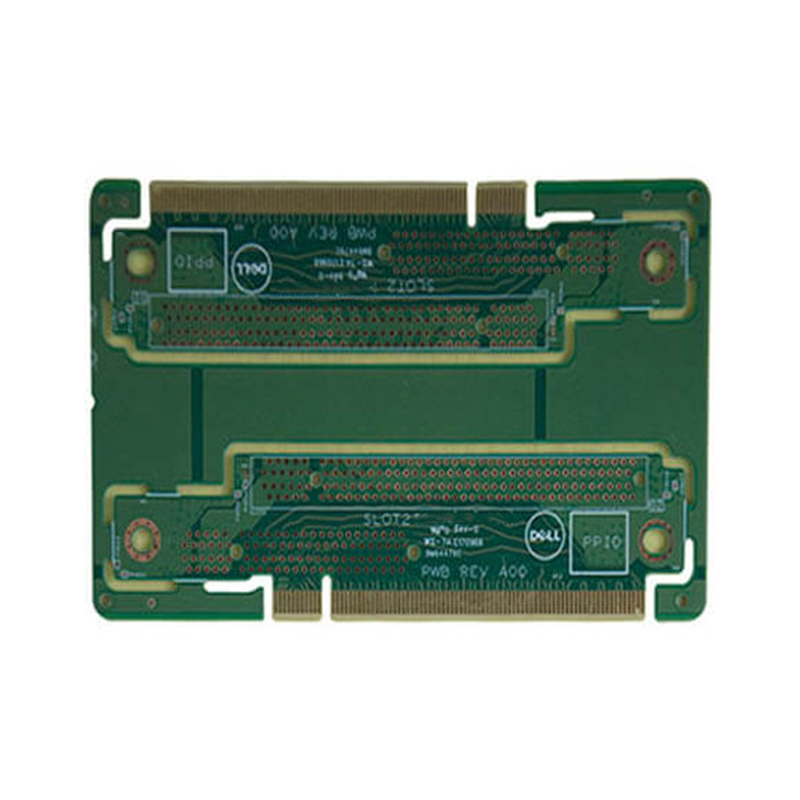

In the mass production and functional testing of computer motherboards, PCI interface performance verification is a necessary procedure, which involves frequent plugging operations on the onboard PCI slot. Long-term repeated insertion and extraction will cause irreversible wear on standard PCI hardware connectors. In this scenario, dedicated PCI adapter PCB serves as transitional connecting hardware to effectively protect original slots and key components from abrasion damage.

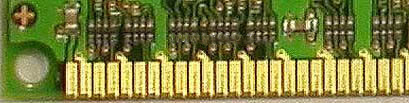

Gold fingers, also known as edge connectors, consist of densely arranged gold-plated conductive contacts, which are extensively applied in core hardware such as computer memory modules and graphics cards. In professional PCB development and manufacturing, gold finger structures are designed as standardized external signal terminals, realizing quick pluggable signal transmission and mechanical locking between circuit boards.

With the continuous integration of electronic functions, a single PCB is unable to meet comprehensive system demands. Multi-PCB collaborative design has become an industry norm, making inter-board electrical connection a crucial design link. Two mainstream connection solutions are commonly applied in actual production, with distinct technical advantages and inherent limitations.

The first solution is direct edge tin soldering. The secondary PCB is electrically bonded to the main board by soldering its edge terminal pads to the corresponding surface pads of the primary PCB. This process omits customized connectors and board-level via holes, simplifying structural design. However, it faces obvious process drawbacks: conventional reflow soldering brings a high cold solder joint rate of nearly 50%. Meanwhile, different base material specifications lead to inconsistent thermal deformation of PCBs after high-temperature processing, resulting in a high overall defect rate. Unqualified soldering will degrade system electrical performance and greatly increase later maintenance costs and workload.

The second mainstream method relies on matched connectors and board-mounted sockets for modular assembly. This building-block connection mode enables convenient disassembly and replacement. Yet its application scope is restricted by poor universality: connectors need precise customization according to socket size, pin quantity, contact spacing and positioning hole layout, and cannot be universally adapted to different PCB models. Moreover, contact terminals are prone to oxidation and aging after long-term service, easily causing poor contact failure and interfering with normal signal transmission.

In PCB structural design and overall scheme optimization, it is essential to select a targeted interconnection mode. Comprehensive evaluation of connection reliability, production process adaptability and comprehensive cost is required to formulate the most suitable inter-board connection solution for product application scenarios.
