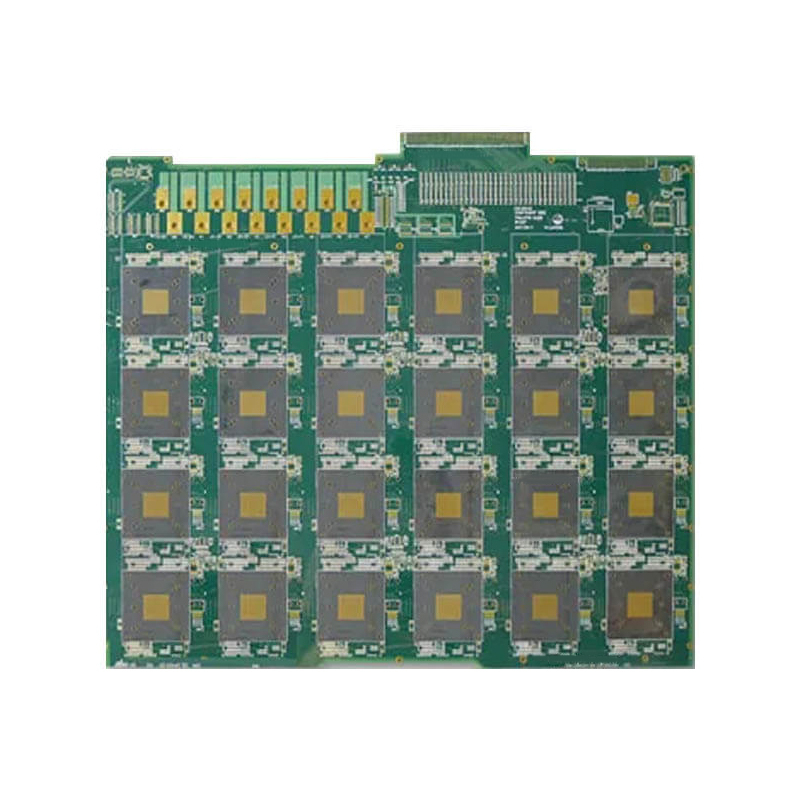

Product Model: Burn-in Board PCB
Base Material: High TG 175℃
PCB Layers: 20 Layers
Solder Mask Color: Green
Overall Dimension: 610 × 572mm
Board Thickness: 3.2mm
BGA Quantity: 24
Surface Technology: Immersion Gold (3μm)
Copper Thickness: Inner layer 70μm/35μm, outer layer 35μm
Application: IC burn-in test board (BIB)

  • Burn-in Board
  • Description

  • Data Sheet

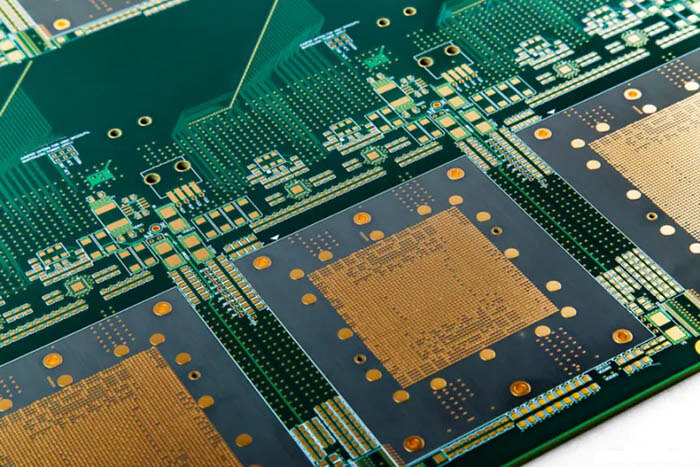

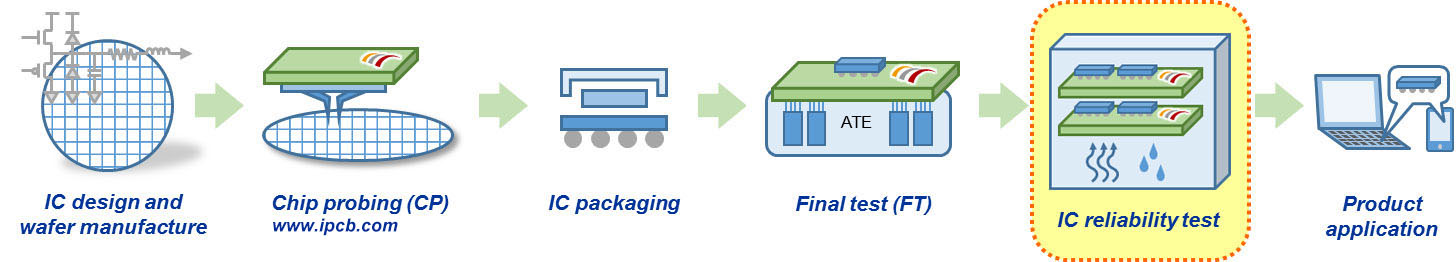

The IC Burn-in Board (BIB) serves as a dedicated carrier for semiconductor IC reliability testing. The chips under test are mounted on the BIB via sockets or other connection methods, then placed into burn-in test equipment. By applying variable temperature, voltage and signal stress, the board verifies the long-term working reliability of ICs under extreme operating conditions.

Core BIB Application Test Items

1. HTOL (High-temperature Operation Life Test)

HTOL simulates the long-term high-temperature operating environment of ICs. Chips are continuously powered on with stable voltage or current loading throughout the test. It monitors whether the chip’s functions and electrical characteristics degrade under high-temperature stress, and evaluates the overall service life and long-term operational stability of semiconductor devices.

2. HAST (High Accelerated Stress Test)

HAST is an accelerated aging test under extreme high temperature and high humidity. It accelerates water vapor penetration into the chip interior through gaps between packaging materials and metal pins, to assess the structural moisture resistance, packaging tightness and anti-corrosion capability of ICs in harsh humid environments.
Maxipcb is a professional manufacturer of BIB burn-in test boards, providing customized design and mass production of high-reliability burn-in boards to meet strict semiconductor reliability test standards.





Key Design & Manufacturing Requirements for BIB Burn-in Board

  1. Independent Power Isolation
    Each chip adopts an independent power supply loop and connects to the main power grid through series resistors, to prevent short circuits of a single chip’s power or signal from causing mass failure of other devices on the board.
  2. High Current Marking Rule
    Clear marking is required on schematics for all traces with operating current exceeding 500mA.
  3. High-Speed Impedance Matching
    For high-frequency wiring requiring impedance control, detailed parameters including copper thickness, trace width and PCB substrate material must be provided for precise impedance design.
  4. Special Protection for Sensitive Devices
    Clear design instructions shall be marked for sensitive pins and precision components that require shielding, isolation or anti-interference processing.
  5. Standard Crystal Oscillator Circuit
    Typical reference circuits and matching capacitance parameters must be provided for crystal oscillator peripheral circuits.
  6. Digital & Analog Partition Design
    Clear specifications for layout and ground division of analog circuits and digital circuits are mandatory to suppress crosstalk.
  7. External Signal Source Specification
    If an external signal source is required, the driving capability and key technical indicators of the supporting signal source shall be defined.
  8. High-Temperature Mechanical Stability
    The PCB must maintain no deformation, warpage or distortion during long-term continuous operation at 150°C.
  9. High-Temperature Electrical Reliability
    No open circuit, short circuit, copper delamination or circuit failure shall occur on the PCB under prolonged high-temperature working conditions.

Model :  Burn-in Board

Material :  High TG TG175

Layer :  20Layers

Color : Green

Size : 610 * 572mm

Board Thickness: 3.2mm

BGA number: 24

Surface technology: Immersion Gold(3U)

Copper thickness: inner layer 70/35um, outer layer 35um

Application : IC burn-in test board (BIB) PCB
