Bluetooth headset PCB Manufacturer

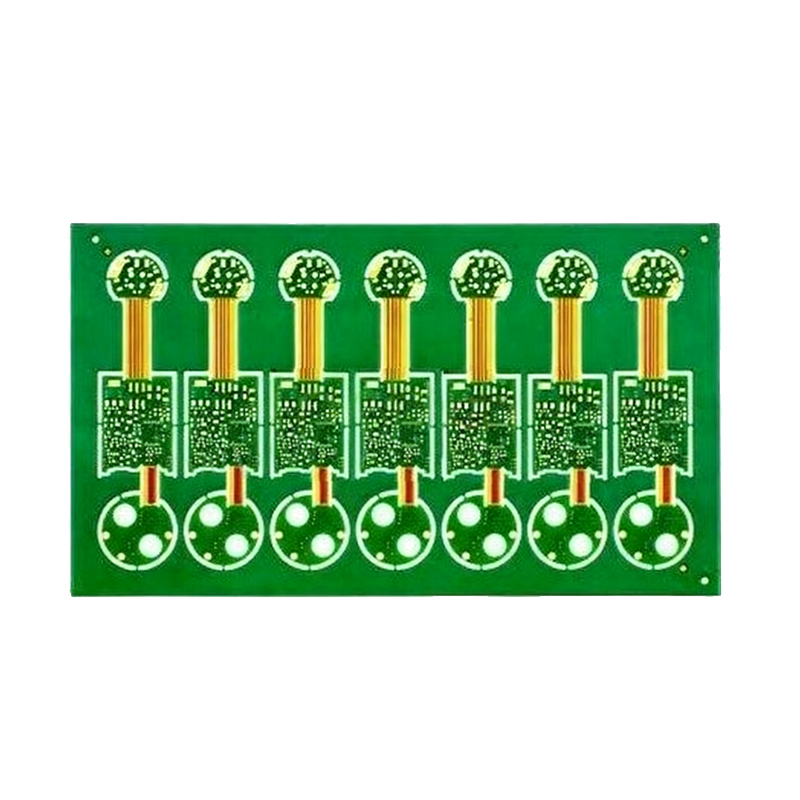

Product Model: 6layers Bluetooth Headset PCB
Material: FR-4 + PI
Layer Structure: 4 Rigid Layers / 2 Flexible Layers
Solder Mask: Green / White
Finished Thickness: 0.6mm
Copper Thickness: 1oz
Surface Treatment: Immersion Gold
Min. Trace / Space: 4mil/4mil
Application: Bluetooth Headset PCB

  • Bluetooth headset PCB Manufacturer
  • Description

  • Data Sheet

1. Bluetooth Technology Application Status & Market Pain Points

Bluetooth technology has become a standard configuration in consumer electronic products such as mobile phones, PDAs, MP3 players and computers. One of its mainstream application scenarios is to realize high-quality music playback and hands-free communication through Bluetooth headsets, which are connected to the Bluetooth interface of the above-mentioned terminal products. However, the popularization speed of Bluetooth technology is not only determined by its own technical advancement, but also closely related to the overall implementation cost.

Currently, the market price of Bluetooth headsets ranges from several hundred yuan, while the unit price of most mobile phones is less than one thousand yuan. The relatively high cost of Bluetooth headsets has become a key factor restricting its market popularization speed and scale, which is significantly lower than that of terminal products such as mobile phones. For Bluetooth device manufacturers, optimizing the cost structure of core components—especially printed circuit boards (PCB)—has become an important way to promote product popularization.





2. Maxipcb Enterprise Overview & Strategic Positioning

Maxipcb Circuits Limited (Maxipcb®.com) is a high-tech enterprise specializing in the R&D and mass production of high-end PCBs. The company has independently developed an industry-leading automatic PCB quotation and ordering system, and is committed to building an Industry 4.0 smart PCB factory under the "Internet +" strategy, providing global customers with professional PCB technical support and integrated one-stop production services. With mature technical capabilities and cost optimization solutions, Maxipcb provides targeted PCB products for Bluetooth devices, helping manufacturers reduce component costs and promote product popularization.

3. Core PCB Product Series for Bluetooth Devices

Maxipcb’s product portfolio covers a full range of high-end PCB products suitable for Bluetooth devices and other consumer electronics, including radio frequency (RF)/microwave/hybrid high-frequency boards (key for Bluetooth signal transmission), conventional FR4 double-sided and multilayer boards, 1~3+N+3 HDI boards, anylayer HDI, rigid-flex composite boards (R-FPCB), blind & buried hole boards, blind slot boards, backdrilled boards, IC carrier boards and heavy copper PCBs. These products are widely applied in Industry 4.0, communication equipment, industrial control, digital products, power modules, computers, automotive electronics, medical devices, aerospace, precision instruments, military equipment and IoT fields, with Bluetooth devices as one of the core application scenarios.

4. R-FPCB Advantages for Bluetooth Devices

Rigid-Flex PCB (R-FPCB), as a core product of Maxipcb, has significant advantages in Bluetooth device applications, effectively addressing the miniaturization and cost control needs of Bluetooth headsets and other products:

First, it optimizes space utilization and eliminates the need for connectors and HotBar processes. The integrated rigid-flex structure integrates rigid and flexible sections into a single unit, saving the installation space originally required for connectors and HotBar processing—critical for compact Bluetooth devices (such as Bluetooth headsets) with high-density circuit design, significantly improving product integration and miniaturization level.

Second, it reduces long-term comprehensive costs. By omitting connectors and HotBar processes, R-FPCB saves the procurement cost of connector components and the processing cost of HotBar operations. Meanwhile, the compact connection between circuit sections reduces the overall volume of Bluetooth devices, further optimizing production and assembly efficiency and lowering the overall manufacturing cost of products.

5. Maxipcb Technical Solutions & Core Capabilities

5.1 R-FPCB Cost & Assembly Optimization

Aiming at the cost and assembly challenges of R-FPCB, Maxipcb has developed targeted solutions: through optimized material matching and process integration, it reduces the manufacturing cost of R-FPCB; for SMT assembly of R-FPCB flexible sections, special tray structures are designed to reduce deformation risks, optimize assembly efficiency, and control additional assembly costs—effectively addressing the cost pain points of Bluetooth device manufacturers.

5.2 Material System for Bluetooth PCB

Maxipcb adopts high-performance materials to ensure stable Bluetooth signal transmission: for RF/microwave PCBs (key for Bluetooth communication), specialized materials including Rogers series (RO4350B, RO3003, RO4003, RO3006, RT/Duroid 5880, RT5870), as well as Arlon, Isola, Taconic, PTFE F4BM and Teflon materials are used, ensuring excellent high-frequency signal transmission performance and anti-interference capability. For hybrid PCBs, customized mixed dielectric laminate solutions (e.g., Rogers RO4350B + FR4, RO4350B + IT180) are provided to balance high performance and cost control.

5.3 Surface Finishing & Manufacturing Capabilities

Maxipcb offers a full range of surface finishing options, including OSP, ENIG (Electroless Nickel Immersion Gold), lead-free HASL (Hot Air Solder Leveling), full-plate gold plating, flash gold, immersion tin, immersion silver and electrolytic gold, meeting the reliability and soldering requirements of Bluetooth device PCBs. The company also boasts comprehensive high-precision processing capabilities, covering golden finger fabrication, heavy copper production, blind/buried via processing, precision impedance control, resin plug hole, backdrilling and oversized PCB production, fully supporting the customization needs of Bluetooth device PCBs.

5.4 Layer & Electrical Specifications

Layer coverage ranges from 2L to 30L, supporting flexible customized layer design for compact Bluetooth devices with high-density circuits. Customizable dielectric constant (DK) includes 2.20, 2.55, 3.00, 3.38, 3.48, 3.50, 3.6, 6.15 and 10.2, precisely matching the electrical performance requirements of Bluetooth RF PCBs and R-FPCBs, ensuring stable and efficient Bluetooth signal transmission.

6. Quality Certification & Global Service

Maxipcb implements Total Quality Management (TQM) and adheres to the quality philosophy of "Do it right the first time, prioritize prevention", holding authoritative certifications including UL, ISO9001 quality management system and SGS RoHS environmental compliance certification, ensuring the reliability and standardization of PCB products for Bluetooth devices.

The company’s products are exported to major global markets including Germany, France, the United States, Australia and Sweden, providing one-stop services covering R&D, prototype verification, mass production and after-sales support. The independently developed automatic PCB online quotation and ordering platform integrates real-time quotation, order placement, payment and after-sales services, significantly shortening customer waiting time and optimizing the R&D and market launch cycles of Bluetooth devices.

7. Application Scenarios

Maxipcb’s PCB products, especially RF/microwave PCBs and R-FPCBs, are widely applied in Bluetooth headsets, Bluetooth speakers and other Bluetooth devices, as well as consumer electronics, military/space, high-power equipment, medical devices, automotive electronics, industrial control, antenna & communication systems, handheld cellular devices, WiFi antennas, radar and power amplifiers, fully meeting the high-reliability, high-density and miniaturization requirements of diverse high-end application scenarios.

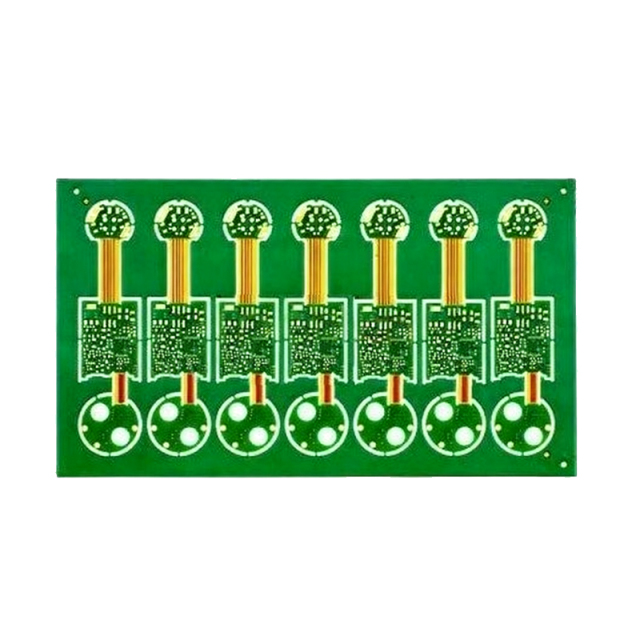

Model : 6layers Bluetooth headset PCB

Material : FR-4 + PI

Layer : Rigid 4L / Flex 2L

Color : Green/White

Finished Thickness : 0.6mm

Copper Thickness : 1OZ

Surface Treatment : Immersion Gold

Min Trace / Space : 4mil/4mil

Application :Bluetooth headset pcb
