BGA Package PCB Design & Manufacturing Technical Specification

Name: BGA PCB Manufacturing
Brand: PCB Printed Circuit Board and PCBA manufacturing
Rating: 5 (1 reviews)

BGA (Ball Grid Array) printed circuit board represents a surface-mount PCB architecture dedicated to integrated circuit packaging. BGA-based surface mounting is widely applied in permanent assembly scenarios such as microprocessor modules, forming non-reworkable interconnection structures rather than reusable components. Compared with conventional PCB layouts, BGA boards feature a higher density of interconnection nodes, with each solder ball implementable as an independent solder joint. The full array of interconnects is distributed in a uniform grid array across the package base, utilizing the entire bottom surface area rather than only peripheral locations.

Owing to its array-type configuration, BGA package contacts are significantly shorter than conventional peripheral pin packages, enabling superior signal transmission speed and enhanced electrical performance. BGA soldering demands high-precision process control and is primarily implemented via automated assembly equipment, making BGA devices unsuitable for socket-mounted applications.

BGA packages represent standard high-density components on modern PCBs, extensively adopted in CPUs, northbridge/southbridge controllers, AGP chips, card bus controllers and similar core devices. Typically, over 80% of high-frequency and critical special signals are led out through BGA-type packages, making BGA fanout and routing design critical to the integrity of key signal paths.

Classification of Peripheral Components Near BGA

Surface-mounted components adjacent to BGA devices are categorized by design priority as follows:

Bypass capacitor circuits
Clock terminal RC networks (series resistors and termination arrays, typically applied to memory bus signals)
EMI suppression RC circuits (damping and pull-up configurations, commonly used for USB differential signals)
Special application circuits (chip-specific functional circuits such as CPU temperature sensing modules)
Sub-40mil miniature power supply networks (comprising capacitors, inductors and resistors; frequently deployed near AGP or similar functional chips, with independent power domains isolated via passive components)
Pull-down circuits
General peripheral circuits (resistors, capacitors, transistors and small ICs without stringent routing constraints)
Pull-up resistor networks

BGA Package Layout & Routing Design Rules

Circuits categorized 1 through 6 represent priority placement items and shall be positioned as close to the BGA device as practical with dedicated layout considerations. Category 7 circuits hold secondary priority but still require proximity to the BGA core. Categories 8 and 9 consist of general auxiliary circuits supporting standard signal interconnection.

Corresponding routing requirements aligned with component priority are defined below:

Bypass circuits: When placed on the same side as the chip, connections shall route directly from BGA pins to bypass components before transitioning to internal planes vias. For opposite-side placement, shared vias may be utilized with BGA VCC and GND pins, with total routed length limited within 100 mils.
Clock RC networks: Subject to constraints on trace width, spacing, routed length and reference grounding; pathways shall be optimized for short, direct routing and avoid crossing power split boundaries.
Damping circuits: Governed by width, spacing, length and grouped routing specifications; pathways shall remain concise with grouped signal isolation to prevent cross-interference.
EMI RC circuits: Compliant with width, spacing, parallel routing and shielding requirements; implementation to follow customer-specific design specifications.
Special function circuits: Adhere to width, grounding and clearance regulations; implementation per customer-defined requirements.
Miniature power circuits (<40mil): Follow specified width requirements, prefer surface-layer routing to preserve inner-layer capacity for signal transmission, and avoid cross-layer power routing above or below the BGA region to minimize interference.
Pull-down circuits: No specialized constraints beyond smooth, continuous routing.

PCB and embedded system designers typically pursue optimized layer counts for cost efficiency while maintaining functional performance. In certain noise-sensitive applications, however, fixed layer configurations become necessary—for instance, routing layers must be sandwiched between ground planes to achieve effective noise suppression.

Beyond application-specific design considerations, two primary BGA fanout methodologies are employed in embedded design:

Dogbone fanout: Recommended for BGA devices with 0.5mm pitch and above
Via-in-pad (VIP) technology: Applied to fine-pitch BGA and μBGA packages with pitch below 0.5mm

Pitch is defined as the center-to-center distance between adjacent solder balls.

BGA PCB Wiring

BGA Fanout & Via Technology

Key terminology associated with high-density BGA interconnection includes:

Through-hole vias: Plated conductive structures establishing electrical continuity between different PCB layers
Blind vias & buried vias: Micro-via structures implemented in high-density multilayer boards, with blind vias accessible from one surface and buried vias fully enclosed within internal layers

BGA PCB Routing Methodology

BGA routing implementation follows three sequential definition stages:

Via dimension determination
Via specifications are determined by component pitch, board thickness, and routing channel capacity between adjacent vias. The keep-out zone defines the matrix or polygonal boundary surrounding the BGA device.
Trace width configuration
Trace width from BGA to internal layers is constrained by minimum manufacturable spacing, which directly impacts assembly cost; reduced spacing typically increases production expenses.
Impedance matching & layer allocation
Designers must maintain specified impedance control and define the total layer count required for complete signal fanout. Outer-ring BGA connections are routed on the top or device-mounting layer, with remaining signals distributed across internal routing layers. Total layer requirements are estimated based on inner-layer channel capacity. Following outer-ring completion, inner concentric rings are sequentially routed until full BGA fanout is achieved.

Advantages of BGA Packaging Technology

Enhanced PCB space utilization: BGA packages employ compact form factors with efficient spatial distribution, reserving additional board area for functional integration and performance optimization.
Superior electrical and thermal performance: Reduced form factor minimizes thermal resistance and improves heat dissipation efficiency. Top-mounted silicon die directs heat directly to the array base, while bottom-mounted configurations maintain efficient thermal pathways. Rigid solder ball structure eliminates fragile leads, improving mechanical stability while preserving high-speed electrical characteristics.
Improved production yield: Generous BGA pad dimensions simplify soldering and assembly operations, accelerating production cycles and enabling feasible rework when required.
Reduced mechanical damage risk: Robust package construction delivers enhanced durability under varied operating conditions.
Optimized total cost efficiency: Dense integration reduces material consumption, while improved thermoelectric performance lowers defect rates and supports high-reliability electronic assembly.

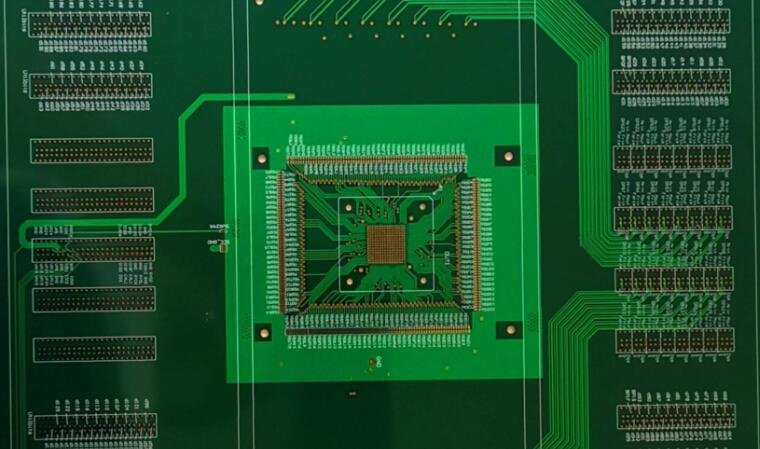

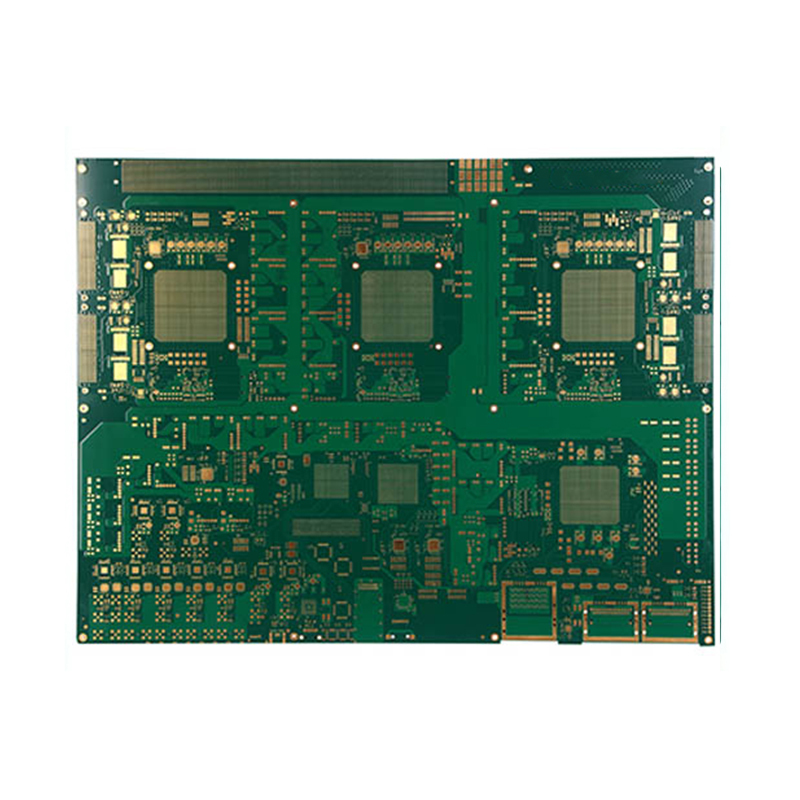

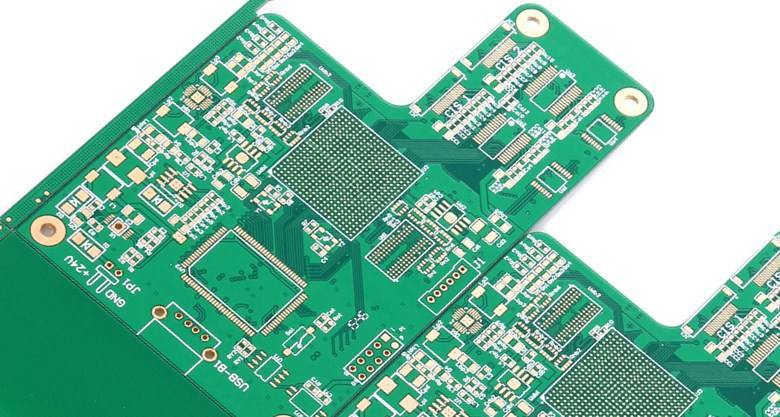

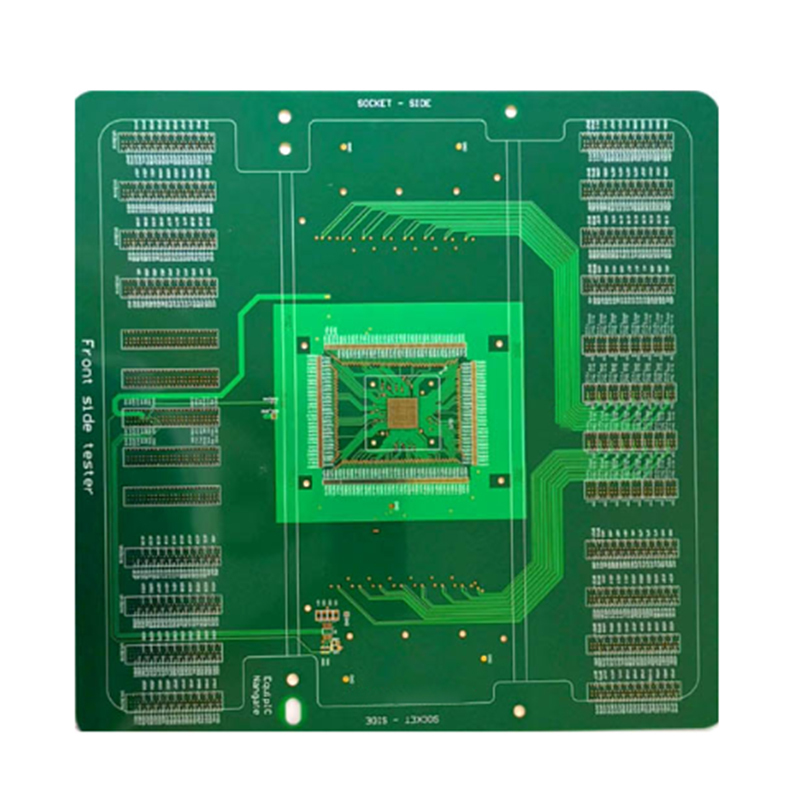

Model: BGA PCB

Material: FR-4

Layer: multilayer

Color: Green/white

Finished Thickness:1.2mm

Copper Thickness: 1/1OZSurface Treatment: lmmersion Gold

Min Trace: 4mil

Min Space: 4mil

Application: electronic product
