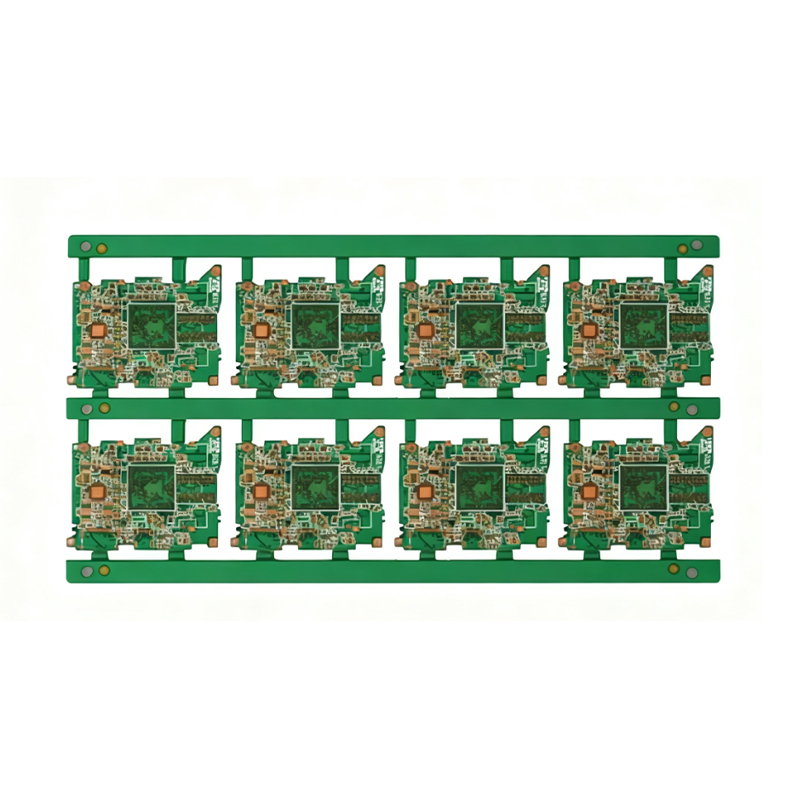

6-Layer Multilayer PCB Technical Overview & Manufacturing Solution

As manufacturing processes for 6-layer printed circuit boards continue to mature, market demand has increasingly emphasized cost control in mass production scenarios. As a professional manufacturer specializing in 6-layer PCB fabrication, Maxipcb Circuits is equipped with highly automated multilayer circuit board production equipment, which effectively guarantees on-time delivery and consistent product quality for customer orders, while further optimizing prototype manufacturing costs for 6-layer PCB assemblies.

Comparison Between 4-Layer and 6-Layer PCB

6-layer PCBs demonstrate superior technical performance compared to standard 4-layer circuit boards. By integrating internal power supply layers, 6-layer structures effectively support power distribution in various electronic devices, industrial equipment and precision instruments, significantly mitigating electromagnetic interference and signal crosstalk issues.
Such circuit boards are widely deployed in desktop computers, laptops and data storage devices including hard disk drives. They also serve as core components in fire alarm systems, enhancing operational stability and response reliability.
Additional typical applications include optical transceivers, mobile communication modules, GPS positioning equipment, industrial control systems and medical health monitoring devices such as cardiac monitors.

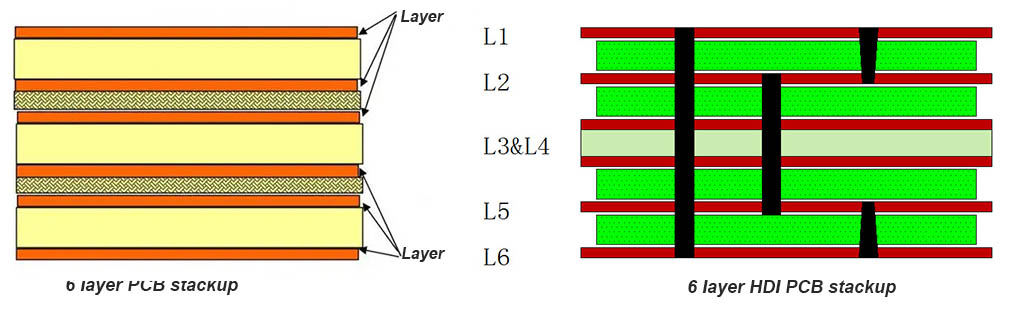

Structurally, a 6-layer PCB extends the configuration of a 4-layer board by adding an extra set of dielectric layers and copper conductive layers. Within the stackup structure, the second and fourth dielectric layers function as core materials; among the six copper conductive layers, the second and fifth layers are typically configured as planar layers, with the remaining layers assigned for signal transmission.

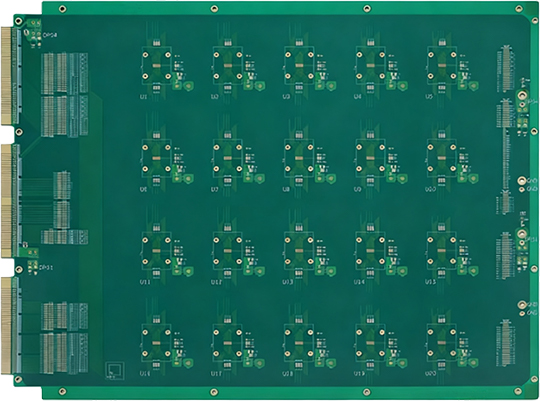

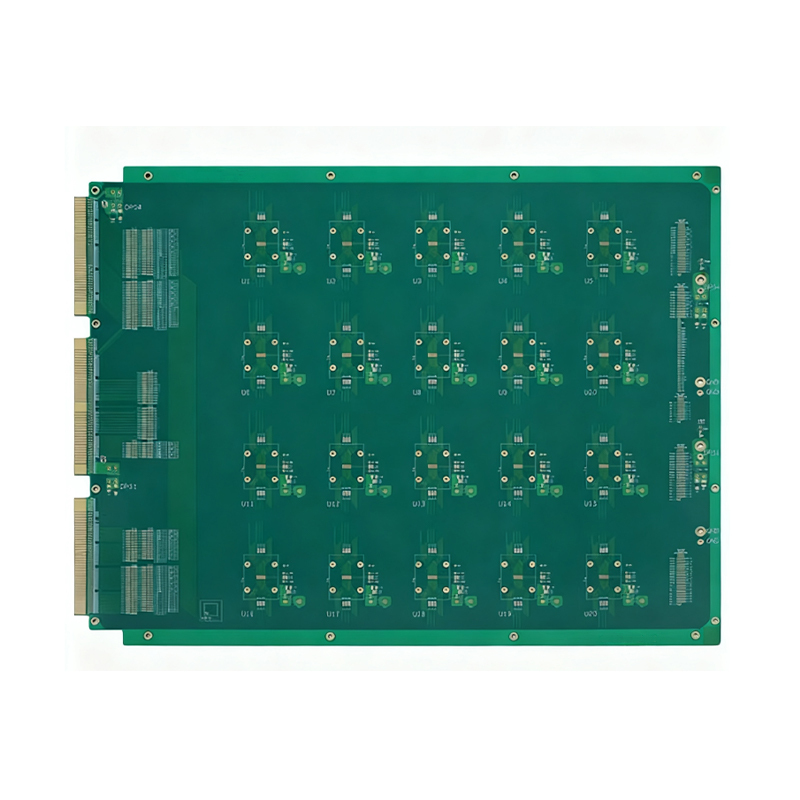

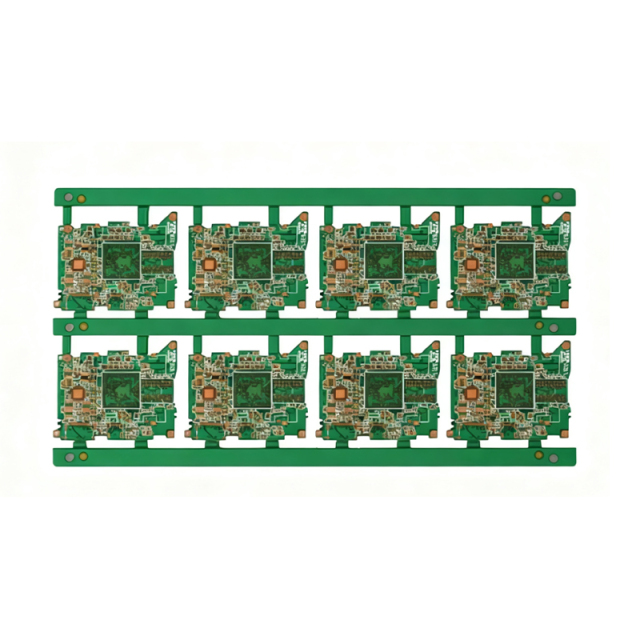

6 Layer PCB Motherboard

6-Layer PCB Stackup Design

Fundamentals of PCB Stackup Configuration

With the widespread adoption of high-speed circuit designs, PCB structures have become increasingly complex. To suppress electrical field interference and ensure signal integrity, strict isolation between signal layers and power layers is required, driving the application of multilayer circuit board designs. Prior to layout development, engineers must determine the appropriate layer count — including 4-layer, 6-layer or higher-layer configurations — based on circuit scale, board dimensions and electromagnetic compatibility (EMC) requirements, forming the basic logic of multilayer board design.
Following confirmation of layer quantity, the arrangement of functional layers and signal distribution strategy constitute the core of PCB stackup planning. Stackup design directly determines the EMC performance of the finished board. A well-optimized 6-layer stackup can effectively attenuate electromagnetic interference (EMI) and reduce interlayer signal coupling.
Layer quantity selection requires comprehensive trade-off rather than simple maximization or minimization. Additional layers facilitate routing density but correspondingly increase manufacturing cost and process difficulty. For fabricators, symmetrical stackup architecture is a critical factor affecting board flatness and production yield. Therefore, layer configuration must balance electrical performance, manufacturability and cost objectives.
Experienced design engineers typically analyze routing bottlenecks after component preliminary placement, quantify special routing requirements including differential pairs and high-sensitivity signal lines to define signal layer quantity, then determine internal power layer schemes based on power domain classification, isolation demands and anti-interference specifications, finalizing the overall board layer structure.


Typical 6-Layer PCB Stackup Principles



Upon confirming layer count, rational layer sequence arrangement becomes the next key task. Standard 6-layer stackup design adheres to the following fundamental principles:
  • Component side and solder side shall be shielded by complete ground planes
  • Minimize adjacent parallel routing layers to reduce crosstalk
  • All signal layers shall be adjacent to ground planes as closely as possible
  • Critical signal routes shall be adjacent to ground planes without crossing split regions

Stackup Management Operation

Layer addition can be implemented via right-click commands including Insert Layer Above and Insert Layer Below, supporting both positive and negative layer definitions; layer sequence can be adjusted through Move Layer Up and Move Layer Down functions.
Layer naming can be modified by double-clicking corresponding labels, with conventional naming conventions such as TOP, GND02, SIG03, SIG04, PWR05 and BOTTOM for clear identification, compatible with Altium Designer 19 and other mainstream EDA tools.
Dielectric thickness shall be set according to stackup structural requirements. To satisfy the 20H design rule, negative layer shrinkage parameters can be configured accordingly. Stackup setup is completed upon confirmation, generating the defined 6-layer board structure.
It is recommended that signal layers adopt positive film format while power and ground planes utilize negative film format, effectively reducing data file size and improving design efficiency.

6-Layer PCB Design Guidelines

Practical 6-layer PCB design must comply with manufacturing process capabilities to ensure producibility. Core design guidelines include:
  • Complete ground planes for shielding beneath component and solder surfaces
  • Avoid direct adjacency between signal layers to eliminate coupling interference
  • Maintain proximity between all signal layers and reference ground planes
  • Deploy adjacent ground planes for high-frequency, high-speed and clock critical signal layers

Selection of 6-Layer PCB Manufacturer

Maxipcb Circuits is a professional 6-layer PCB manufacturer based in China, providing economical and reliable 6-layer circuit board solutions. Supported by complete manufacturing processes and quality control systems, the company delivers cost-optimized 6-layer PCBs for both prototype and mass production requirements. Customers seeking professional 6-layer PCB manufacturing services are welcome to make inquiries.
