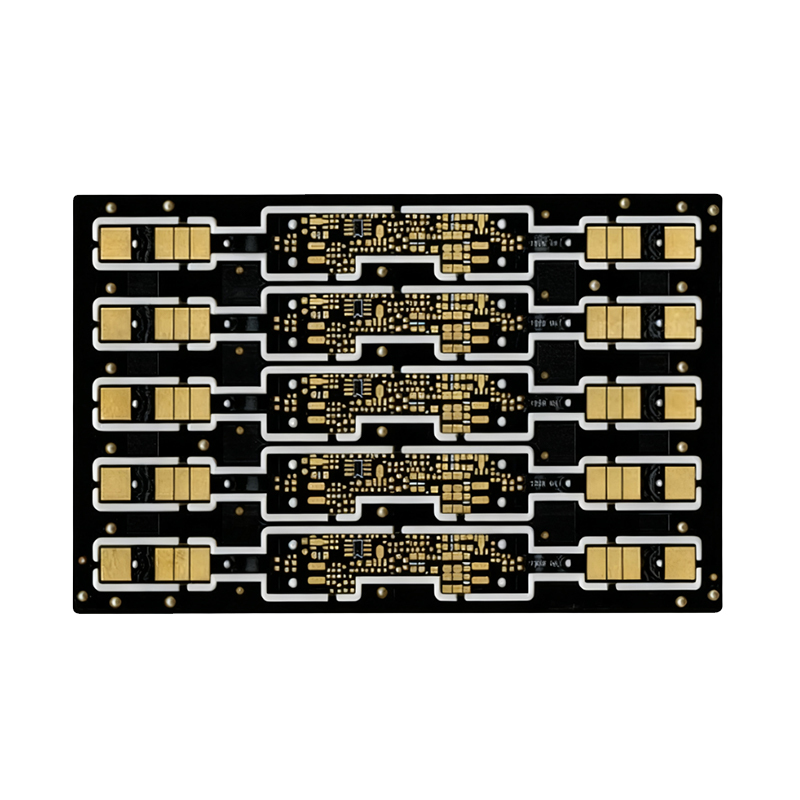

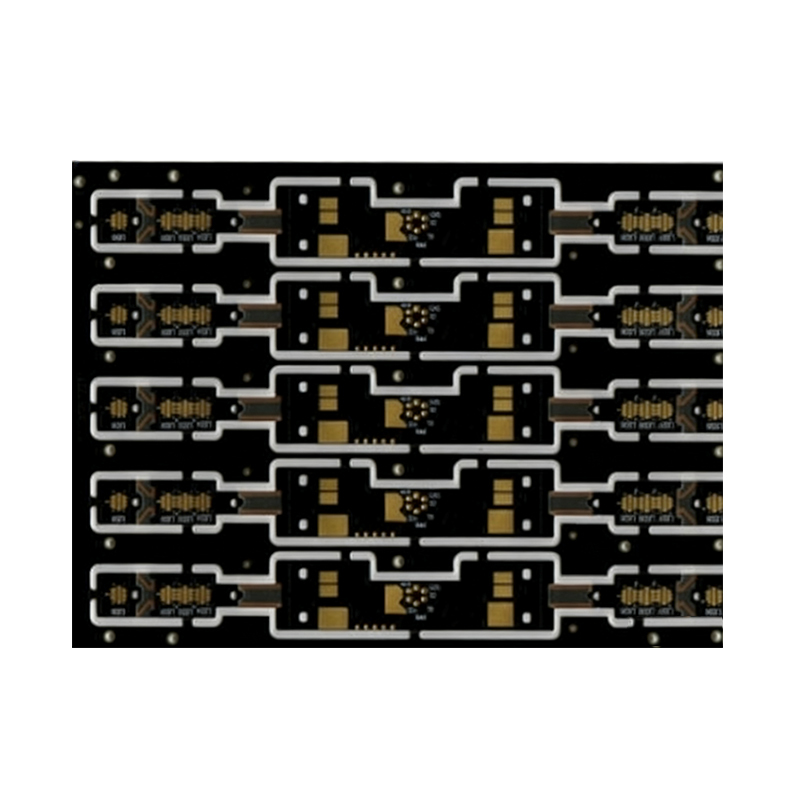

2Layers Rigid-Flex PCB(R-FPCB)

Product Model: Rigid-Flex PCB
Material: FR4 + PI Composite Substrate
Layer Structure: 1 Rigid Layer + 1 Flexible Layer
Copper Thickness: 2oz
Finished Thickness: 1.6mm
Surface Finish: Immersion Gold PCB (Gold Thickness: 2U)
Min. Aperture: 0.2mm
Min. Trace / Space: 3mil/3mil
Special Process: Resin Plug Hole + Electroplating Filling

  • 2Layers Rigid-Flex PCB(R-FPCB)
  • 2Layers Rigid-Flex PCB(R-FPCB)
  • Description

  • Data Sheet

1. Enterprise Strength & Quality Management

Maxipcb is equipped with a full set of advanced PCB production and testing equipment, with experienced production technicians and a high-quality management team. The company implements Total Quality Management (TQM) with the philosophy of "Do it right the first time, prioritize prevention", establishing a comprehensive quality assurance system to improve production efficiency, stabilize quality control and optimize costs. Adhering to the environmental philosophy of pollution reduction, resource rational utilization and sustainable development, Maxipcb continuously enhances its industry status and corporate image.

2. Online Service Platform Advantage

Maxipcb independently developed an automatic PCB online quotation and ordering platform, integrating real-time quotation, ordering, payment and after-sales services. Relying on the industry-leading automatic quotation system, it shortens customer waiting time, reduces R&D cycles and accelerates product time-to-market.

3. Technical Commitment

Maxipcb continuously optimizes PCB production processes, solves technical difficulties for customers, challenges complex technical bottlenecks, and provides products with more stable quality, higher performance and satisfactory services to maintain technological leading advantages.

4. R-FPCB Demand & Process Control for Mobile Camera Modules

With the upgrading of mobile imaging technology, smartphone camera modules require specialized R-FPCB to meet ultra-thin, high-flatness and miniaturization requirements. Maxipcb’s R-FPCB for camera modules adopts optimized processes: laser cutting deviation detection pads, copper-free cutting paths and shared cutting lines to improve efficiency. The asymmetric stacking structure controls warpage ≤ 0.75%, mechanical blind milling avoids flexible layer damage, and laser forming ensures ±0.05mm shape tolerance. Currently, heat dissipation and structural strength issues remain to be optimized.

5. Product Application & Global Service

Maxipcb’s R-FPCB products are widely used in mobile camera modules, industrial, medical, automotive, communication, digital and aerospace fields. Products are exported to Germany, France, the US, Australia, Sweden and other global markets, providing one-stop services covering R&D, production and after-sales.

6. Quality Certification & R-FPCB Core Advantages

Maxipcb holds UL, ISO9001 and SGS RoHS certifications, focusing on R-FPCB R&D and mass production to provide reliable solutions. R-FPCB integrates FPC and PCB advantages, supporting 3D wiring, with ultra-thin high-flatness, space optimization, stable signal transmission, flexible adaptability and simplified assembly. Its production cycle is 5-7 times that of standard rigid PCBs, and costs are gradually decreasing with industry maturity.

7. Maxipcb’s Exclusive R-FPCB Advantages

• Material Selection: DuPont AP adhesive-free PI flexible substrates, PI resin rigid substrates with P95 prepregs, and No-flow prepregs for rigid-flex junctions, all meeting RoHS, high Tg and impedance requirements.
• Process Control: Electrolytic cleaning for inner layer transfer (supporting 0.1mm~0.15mm line width/spacing), OPE positioning and X-ray drilling for multi-layer alignment, and optimized lamination/drilling to ensure precision and flatness.

Model : Rigid-flex PCB

Material : FR4 +PI

Layer : Rigid 1L + Flex 1L

Copper Thickness  : 2OZ

Finished Thickness : 1.6mm

Surface Treatment : Immersion Gold PCB

PCB gold thickness 2U

Min Hole : 0.2mm

Trace/Space : 3mil/3mil

Special process : Resin plug hole + Electroplating filling
