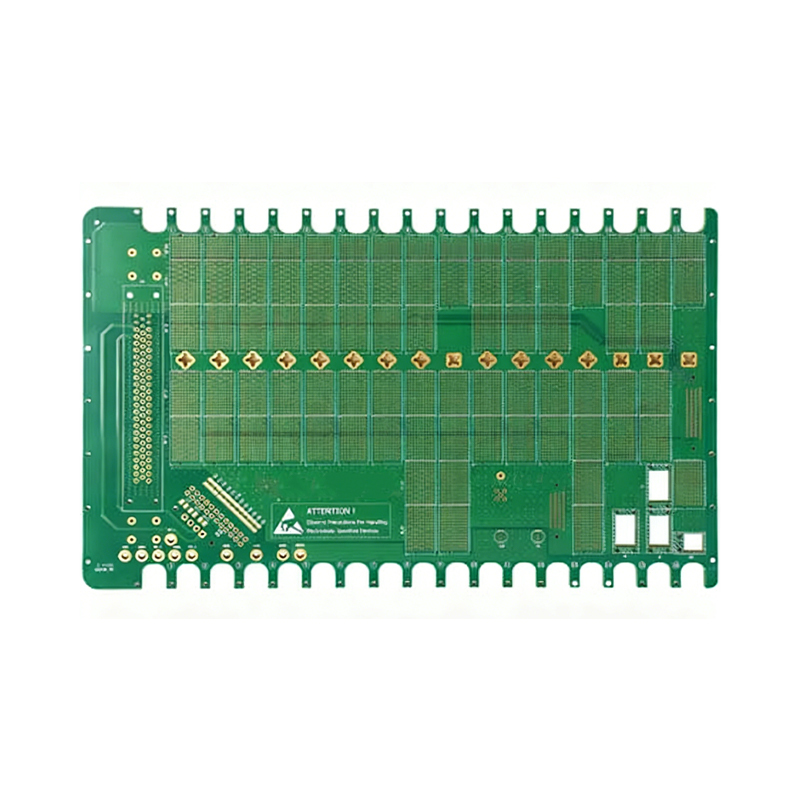

Product Model: 16L Blind Vias Backplane PCB
Base Material: High TG FR4
PCB Layers: 12 Layers
Copper Thickness: 1OZ
Finished Thickness: 1.6mm
Surface Treatment: Immersion Tin
Min Trace / Space: 4mil/4mil (0.1mm/0.1mm)
Minimum Aperture: 0.2mm (8mil)
Special Process: Blind and buried vias
Layer Structure: 1-2, 1-3, 4-6, 7-12
Application: Security control PCB

  • 16L Blind Vias Backplane PCB
  • Description

  • Data Sheet

Backplane PCB, also called backplane, is a type of substrate specifically designed to carry functional PCBs, including daughter boards and line cards. Its core tasks are to provide mechanical support for daughter PCBs, distribute power to all functional PCBs, and realize reliable electrical connection and signal transmission between them. Therefore, the overall system function is achieved through the coordinated operation of the backplane and its matched daughter PCBs.

With the continuous improvement of IC (integrated circuit) component integration, the increasing number of I/Os, and the rapid advancement of electronic assembly technology, high-frequency signal transmission, and high-speed digitization, the functions of backplanes have gradually expanded beyond simple bearing to include signal transmission and distribution for functional boards. To fulfill these expanded functions, backplanes must meet more stringent technical requirements in terms of layer count (20 to 60 layers), board thickness (4 mm to 12 mm), number of through-holes (30,000 to 100,000), reliability, operating frequency, and signal transmission quality.

Model : 16L Blind Vias Backplane PCB

Material : High TG FR4

Layer : 12Layers

Copper Thickness : 1OZ

Finished Thickness : 1.6mm

Surface Treatment : Immersion Tin

Trace/Space : 4mil/4mil(0.1MM/0.1MM)

Min Hole : 0.2mm(8mil)

Special Process : Blind and buried vias

Layer structure : 1-2,1-3,4-6,7-12

Application : Security Control PCB
