undesirable potential difference between any two current-carrying conductors. It is usually caused by factors such as grounding interference and power supply interference, which may lead to system instability, data errors and other issues.
1. What Is Differential-Mode Interference?
Differential-mode interference propagates between two conductors and is a symmetrical interference. It is defined as an undesirable potential difference between any two current-carrying conductors. It is usually caused by factors such as grounding interference and power supply interference, which may lead to system instability, data errors and other issues.
2. How to Eliminate Differential-Mode Interference?
The following methods can be used to eliminate differential-mode interference:
- Improve grounding isolation through differential signals: Use components such as isolation amplifiers or isolation transformers in the design to separate the differential mode of signals and avoid the impact of differential signals on grounding.
- Reduce common-mode noise: Reduce the level of common-mode noise and minimize differential-mode interference by designing appropriate filters and using low-noise power supplies.
- Optimize the grounding circuit: In PCB design, rationally plan the grounding layout, shorten the grounding path, reduce grounding resistance, and avoid adverse effects such as loop formation.
- Add protective measures: Adopt measures such as shielding and shielded wires to isolate external electromagnetic fields and reduce interference to differential modules.
- Enhance signal anti-interference capability: Improve signal performance and anti-interference ability by using appropriate signal control technologies such as differential driving and differential receiving.
In short, eliminating differential-mode interference requires comprehensive consideration of factors such as signal sources, receivers, transmission media and grounding, as well as corresponding optimization and improvement measures. Differential signals are increasingly used in high-speed PCB design, and the most critical signals in circuits usually adopt a differential structure.
Why is this the case? Compared with ordinary single-ended signal routing, differential signals have the advantages of strong anti-interference ability, effective EMI suppression and accurate timing positioning.
3. Routing Requirements in Practical Applications

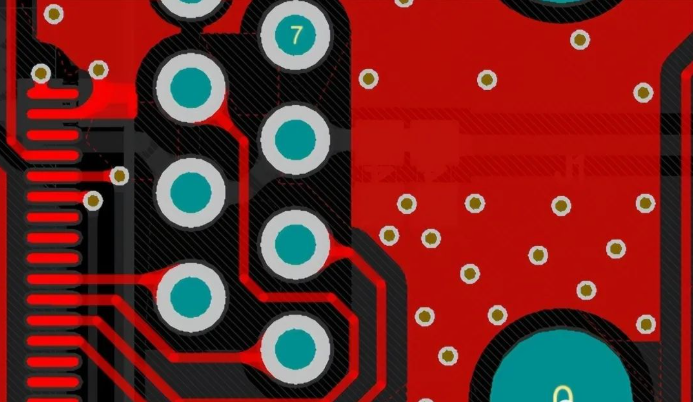

On a circuit board, differential routing must consist of two traces that are equal in length, equal in width, closely spaced, and on the same layer.

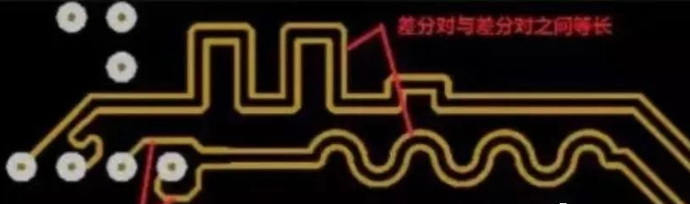

- Equal length between different differential pairs
- Equal length of the two networks within a differential pair
-
Equal Length
Equal length means that the two traces should be as long as possible to ensure that the two differential signals maintain opposite polarities at all times and reduce common-mode components.
-
Equal Width and Equal Spacing
Equal width means that the routing width of the two signals must be consistent; equal spacing means that the distance between the two traces remains unchanged to maintain parallelism.
-
Minimal Impedance Variation
One of the most critical considerations when designing a PCB with differential signals is to determine the target impedance for the application and plan the differential pairs accordingly. In addition, impedance variation must be kept as low as possible. Differential trace impedance depends on factors such as trace width, trace coupling, copper thickness, PCB material and stack-up. These factors should be taken into account when avoiding any changes to differential impedance.
4. Common Misunderstandings
Misunderstanding 1: Believing that differential signals do not require a ground plane as a return path, or that differential routing provides a return path for each other.
This misunderstanding arises from confusion of superficial phenomena or insufficient understanding of high-speed signal transmission mechanisms. Differential circuits are insensitive to common-mode noise and other noise signals that may exist on power and ground planes.
In PCB circuit design, the coupling between differential traces is usually low (typically 10% to 20% coupling), and most coupling is to the ground. Therefore, the main return path of differential routing always exists on the ground plane.
When a local plane is disconnected without a reference plane, the coupling between differential traces provides the main return path. Although the impact of a broken reference plane on differential routing is less severe than on single-ended routing, it degrades differential signal quality and may increase EMI, so this situation should be avoided as much as possible.
Misunderstanding 2: Believing that maintaining equal spacing is more important than matching trace lengths.
In practical PCB routing, the requirements for differential design often cannot be met simultaneously. Due to factors such as pin distribution, vias and routing space, trace length matching must be achieved through proper meandering, which results in partial non-parallelism of the differential traces.
The most important rule in PCB differential routing design is trace length matching; all other rules can be flexibly adjusted according to design requirements and practical applications.
Misunderstanding 3: Believing that differential traces must be placed very close to each other.
Placing differential traces close to each other only strengthens their coupling, improves noise immunity, and makes full use of the opposite polarity of magnetic fields to cancel external electromagnetic field interference.
Although this method is effective in most cases, it is not absolute. If complete isolation from external interference is ensured, strong mutual coupling is no longer required to achieve anti-interference and EMI suppression goals.
How to ensure good isolation and protection of differential traces? Increasing the distance from other signal lines is one of the most fundamental methods. Electromagnetic field energy decreases with the square of the distance; when the total distance between traces is 4 times the trace width, the interference between them is extremely weak and negligible.
In addition, isolation through a ground plane also provides excellent shielding. This structure is often used in high-frequency (above 10G) IC package PCB design, known as the
CPW (Coplanar Waveguide) structure, which ensures strict differential impedance control.
