Many engineers ask: Since capacitive reactance Xc = 1/(2πfC), why do large capacitors filter low frequencies and small capacitors filter high frequencies? This article explains the physics, rules, and practical selection of filter capacitors.
Many engineers ask: Since capacitive reactance Xc = 1/(2πfC), why do large capacitors filter low frequencies and small capacitors filter high frequencies? This article explains the physics, rules, and practical selection of filter capacitors.

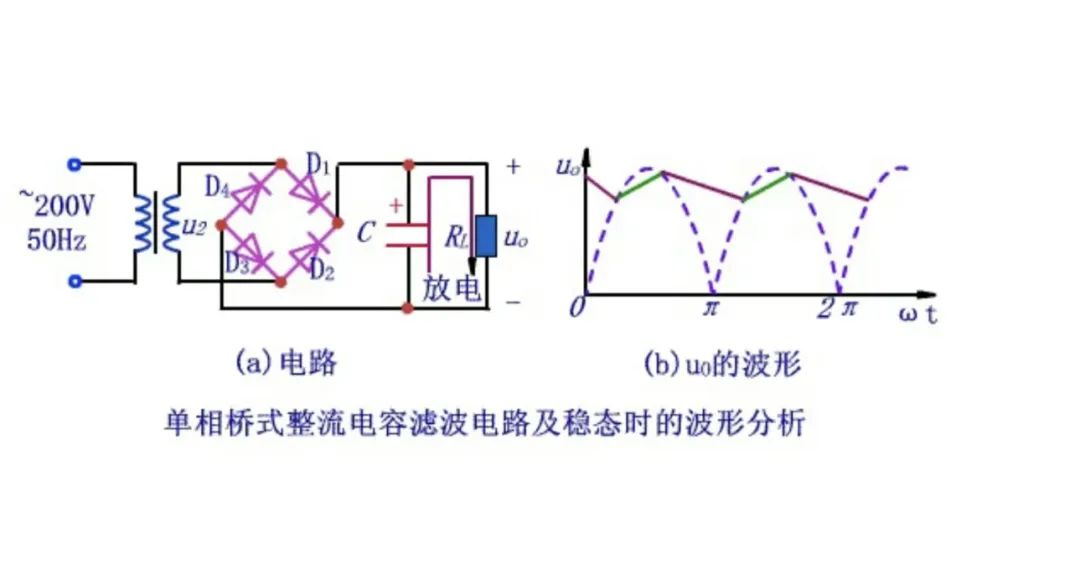

Core Principle
A real capacitor acts as an LC resonant circuit (capacitance + lead inductance).
- Below self-resonant frequency (SRF): capacitive (low impedance for filtering)
- Above SRF: inductive (loses filtering effect)
Why large capacitors filter low frequencies:
Large caps have
lower SRF → effective only at low frequencies.
Why small capacitors filter high frequencies:
Small caps have
higher SRF → effective at high frequencies.
Basic Selection Rules
- ~10 pF: Filters high‑frequency noise
- ~0.1 μF: Filters low‑frequency ripple and stabilizes voltage
- Large tantalum capacitors: For high transient current loads
Digital Circuit Recommendations
- < 10 MHz: 0.1 μF for decoupling
- > 20 MHz: 1–10 μF for better high‑frequency suppression
- Bypass: 0.1 μF or 0.01 μF (matched to resonance frequency)
Practical Design Guide
- Parallel large + small capacitors (difference ≥ 100× in value)
Covers a wider frequency band.
- Capacitance ≈ 1 / frequency (rough empirical formula)
- Formula for precise selection:
C = 4π² / (R · f²)
- Place capacitors close to IC pins and ground
Minimize lead inductance to keep SRF high.
How to Use SRF
- Check SRF from the datasheet or measure with a network analyzer.
- Simulate (e.g., with RF Sim99) to verify noise rejection across your operating band.
- Test on actual hardware to optimize performance.
Simple Analogy
Think of a capacitor as a leaky cup:
- High frequency: Use small cups → fill often, keep level stable.
- Low frequency: Use large cups → prevent level dropping between pulses.
